My Data (Brake Moment)
SWIFT 20 Sensors Analyzing SWIFT Data
119
My Data (Brake Moment)
The moment My should show strong similarities with the force Fx and is
calculated by the SWIFT sensor using the distance Z.
My
∝ Fx x Distance Z

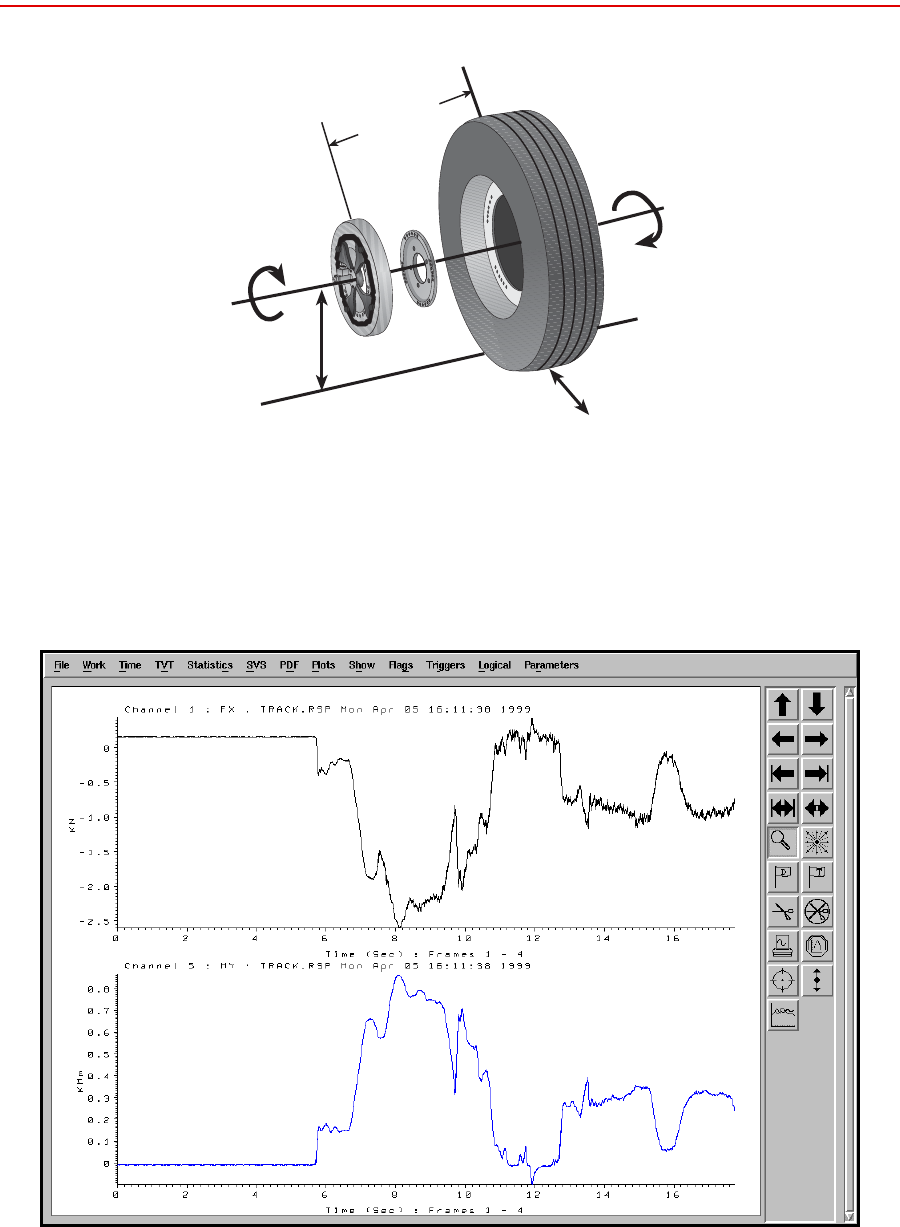

The relationship between Fx and My is shown in the following time history plot:
Fx
Distance Y
S20-30
Distance Z
My
My
