Cable Configurations
SWIFT 20 Sensors Installing the Transducer
109
SWIFT Low-Profile TI to SWIFT Low-Profile TI

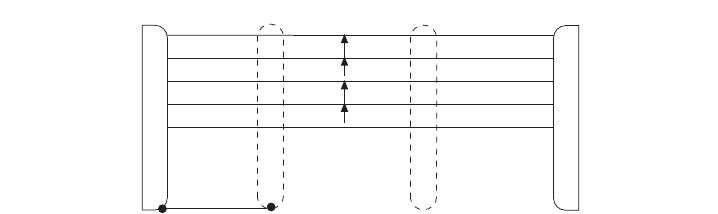

The following cable (MTS p/n 510742-XX) is used to connect one SWIFT TI to
another, for RS-485 communication.
1
2
3
4
5
+TX
TX
+RX
RX
GND
P2
1
2
3
4
5
P3
Twisted
Shielded
Pairs
To COMM IN
of SWIFT TI
To COMM OUT
of SWIFT TI
+TX
TX
+RX
RX
GND
