SWIFT 10 ATV Sensors
94
Road Simulator
Installing the Transducer

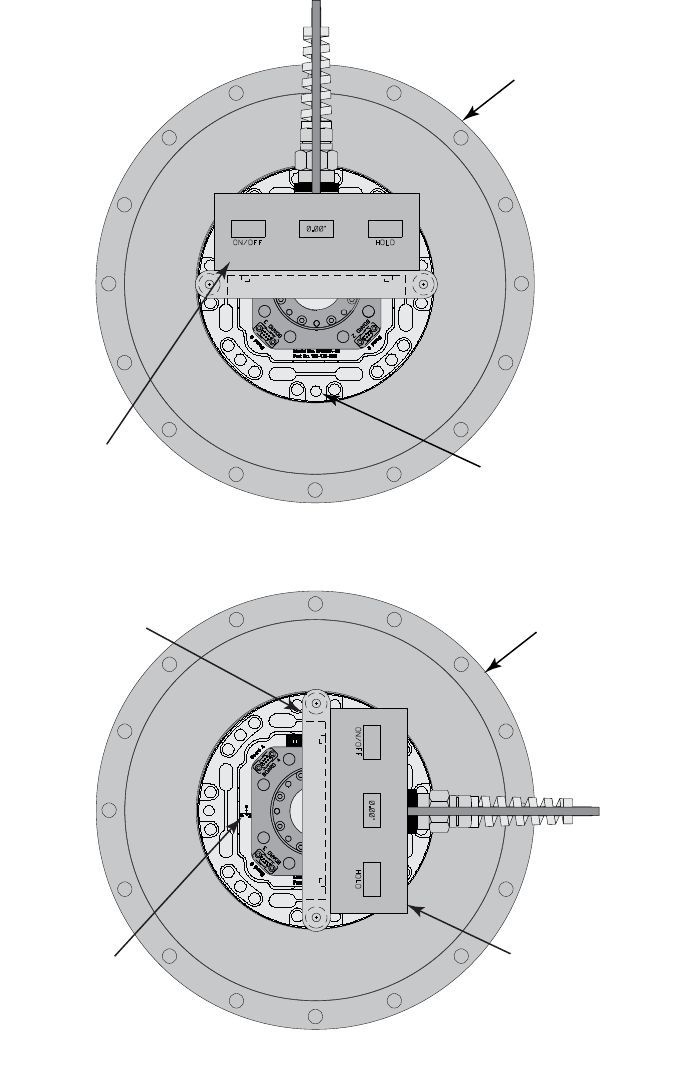

4. Install the inclinometer/level bracket assembly on the transducer by
inserting the dowel pins in the level bracket into the pin pilot holes provided
in the transducer, as shown in the next figure.
The orientation of the inclinometer/level bracket assembly is determined by
the orientation of the anti-rotate bracket.
Setup for Horizontal Anti-rotate
Bracket Configuration
Axes
Icon
S10-21
Digital Inclinometer
–in this position
should read 90°, ±0.1°
Level Bracket
Setup for Vertical Anti-rotate
Bracket Configuration
Digital Inclinometer
–in this position
should read 0°, ±0.1°
Level Bracket
Mounting Holes (4)
Adapter Plate
Adapter Plate
