SWIFT 10 ATV Sensors
36
Transducer Interface
Hardware Overview

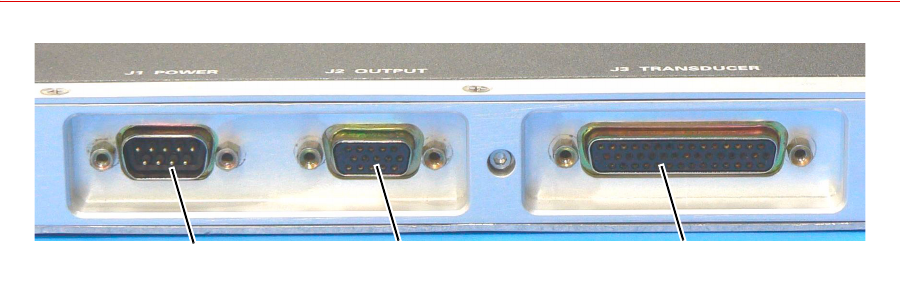

TI Rear Panel
Transducer Interface Rear Panel
J1 Power connector Connect a power cable from the external power source.
J2 Output connector The J2 Output connector provides the conditioned sensor outputs that can be
connected to a data acquisition or test control system.
J3 Transducer
connector
Connect the data cable from the transducer slip ring to the Transducer Connector.
J3 Transducer
Connector
J2 Output
Connector
J1 Power
Connector
