SWIFT 10 ATV Sensors
100
Fx Data (Longitudinal Force)
Analyzing SWIFT Data

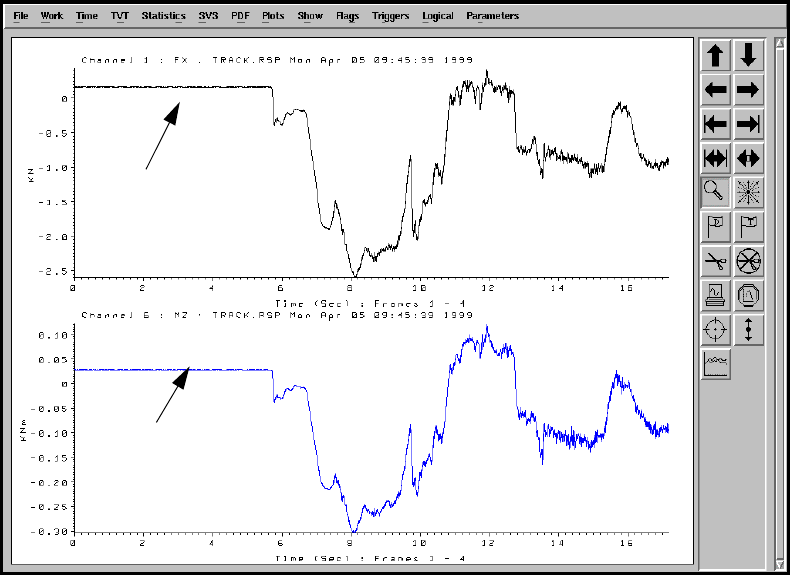

The following figure illustrates the relationship between Fx and Mz, for this test
case, which had a 170 mm (6.7 inch) offset from the tire centerline to the SWIFT
sensor centerline:
Fx = 165 N observed
Distance = 170 mm
Mz = Fx x Distance = 165 N x 170 mm = 28 N•m
Friction/Rolling
resistance Offset
Fx Offset=165N
Mz Offset due to
Fx=28Nm
