Monitoring Test Information
MTS Series 793 Controller Overview Operation Concepts
79

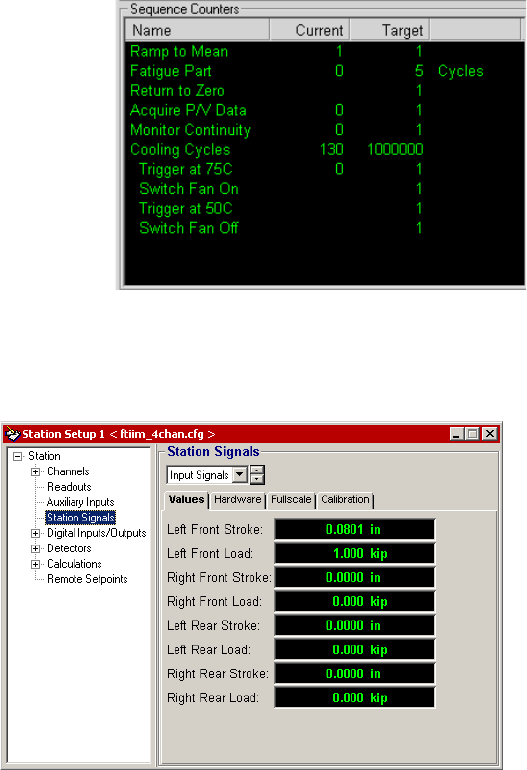

Sequence counters Sequence Counters display the progress of individual processes within the test.
They can be especially useful for procedures that contain nested groups, because
you can configure them to show test progress within the nested structure of the
procedure.
Input signals The Station Signals panel displays all of the input signals of the station with their
current values.
This sample procedure includes a group process
labeled “Cooling Cycles,” which contains four
nested processes (with indented label names,
“Trigger at 75C,” and so forth.)
Name displays the assigned process label
Current displays the current value of the counter
Target displays the assigned number of times
the process should execute (or repeat), or the
number of cycles to be executed.
