Note:
Two water manifolds are supplied, one for each grip. Mount a water manifold on each column to
keep the temperature of each column balanced.
a) Mount one water valve clamp to a load unit column. Mount the other water valve clamp to the other
load unit column.
b) Connect water lines (supply and drain) between the water lines attached to the columns and the upper
and lower grips.
c) Connect the water supply (and drain) to the water valve/drain mounted to the load unit columns.

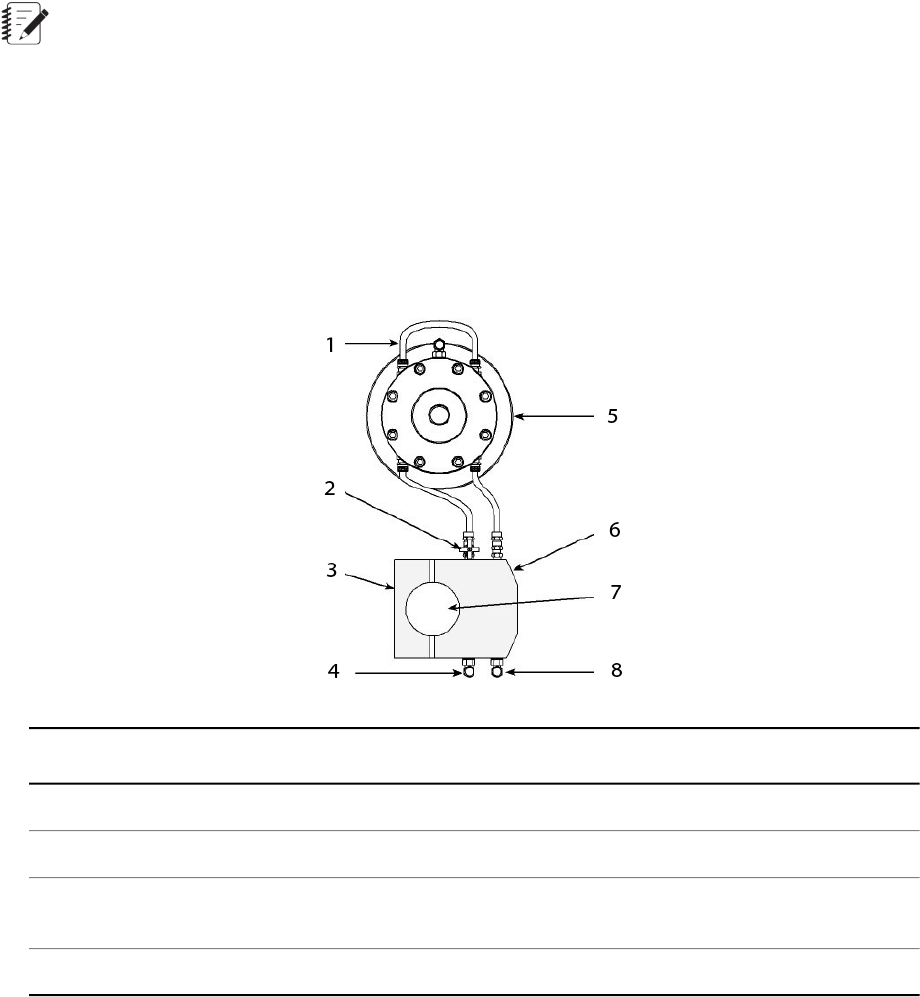

DescriptionItemDescriptionItem
Hydraulic Chamber of Grip5Warming/Cooling Water Return Loop1
Water Manifold6Shutoff Valve2
Load Unit Column7Warming/Cooling Water Kit Mounting
Bracket
3
To Warming/Cooling Water Drain8From Warming/Cooling Water Supply4
12. Install the wedges.
Go to “Change Wedges 647.02 - 647.100” for the procedure to install wedges into the grips.
Series 647 Hydraulic Wedge Grips Reference Manual 65
Installation
