DescriptionItemDescriptionItem
Lower Wedge Chamber3
b) Attach a lifting strap to the eye bolts.
Note:
Ensure that you stabilize the wedge assembly while you install it.
c) Position the lower wedge assembly in the environmental chamber, using a lifting device if needed.
d) Lower the wedge chamber until it contacts the cylinder assembly.
e) Remove the lifting strap and eye bolts.
f) Rotate the wedge chamber until you feel the threads engage. Slowly screw the cylinder into the piston
extension.
8. Install the upper wedge chamber.
a) Install the eye bolts on the top of the wedge chamber.

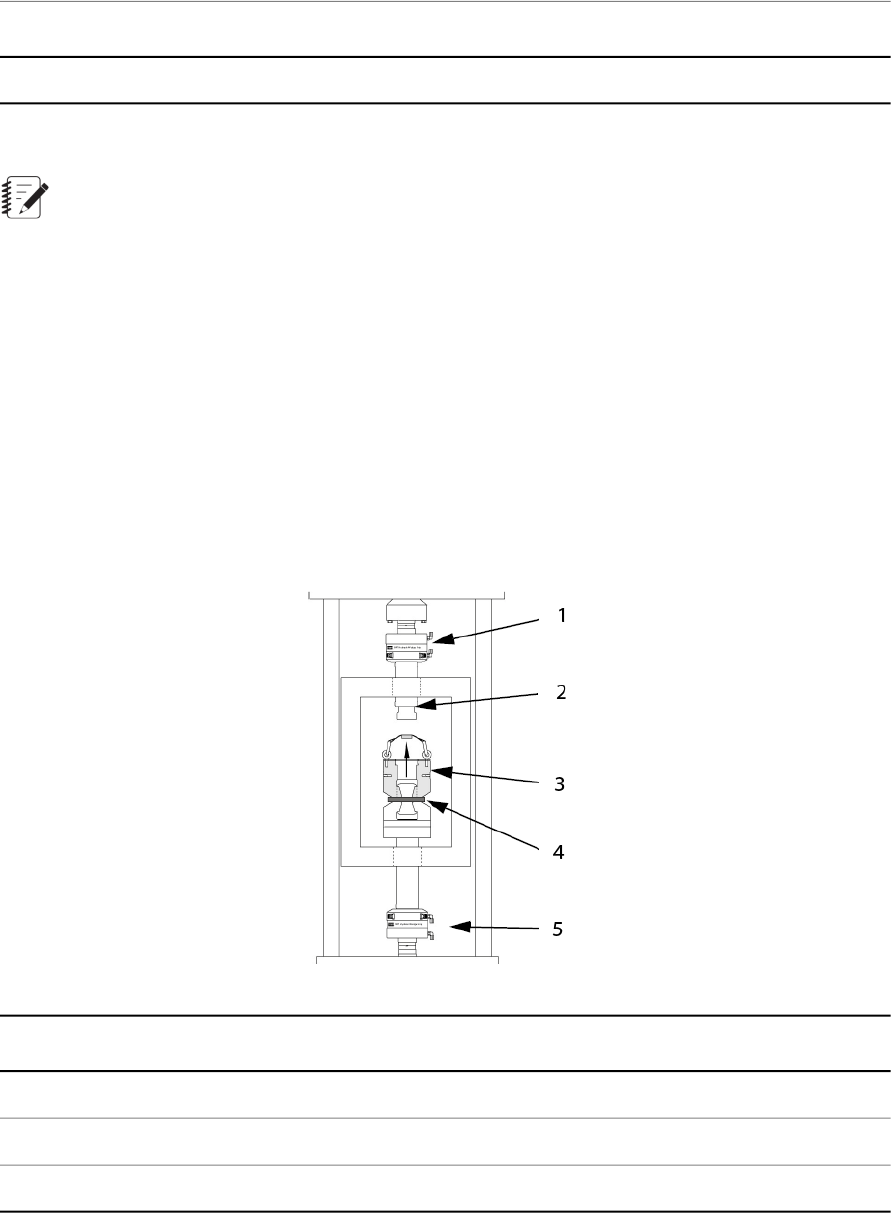

DescriptionItemDescriptionItem
Wood Block4Upper Hydraulic Chamber1
Lower Grip Assembly5Cylinder Assembly2
Upper Wedge Chamber3
b) Attach a lifting strap to the eye bolts.
c) Place a wood block on top of the lower wedge chamber.
Series 647 Hydraulic Wedge Grips Reference Manual 63
Installation
