Instruction Manual

RD41298500C/REV-H
SHEET 4 OF 4

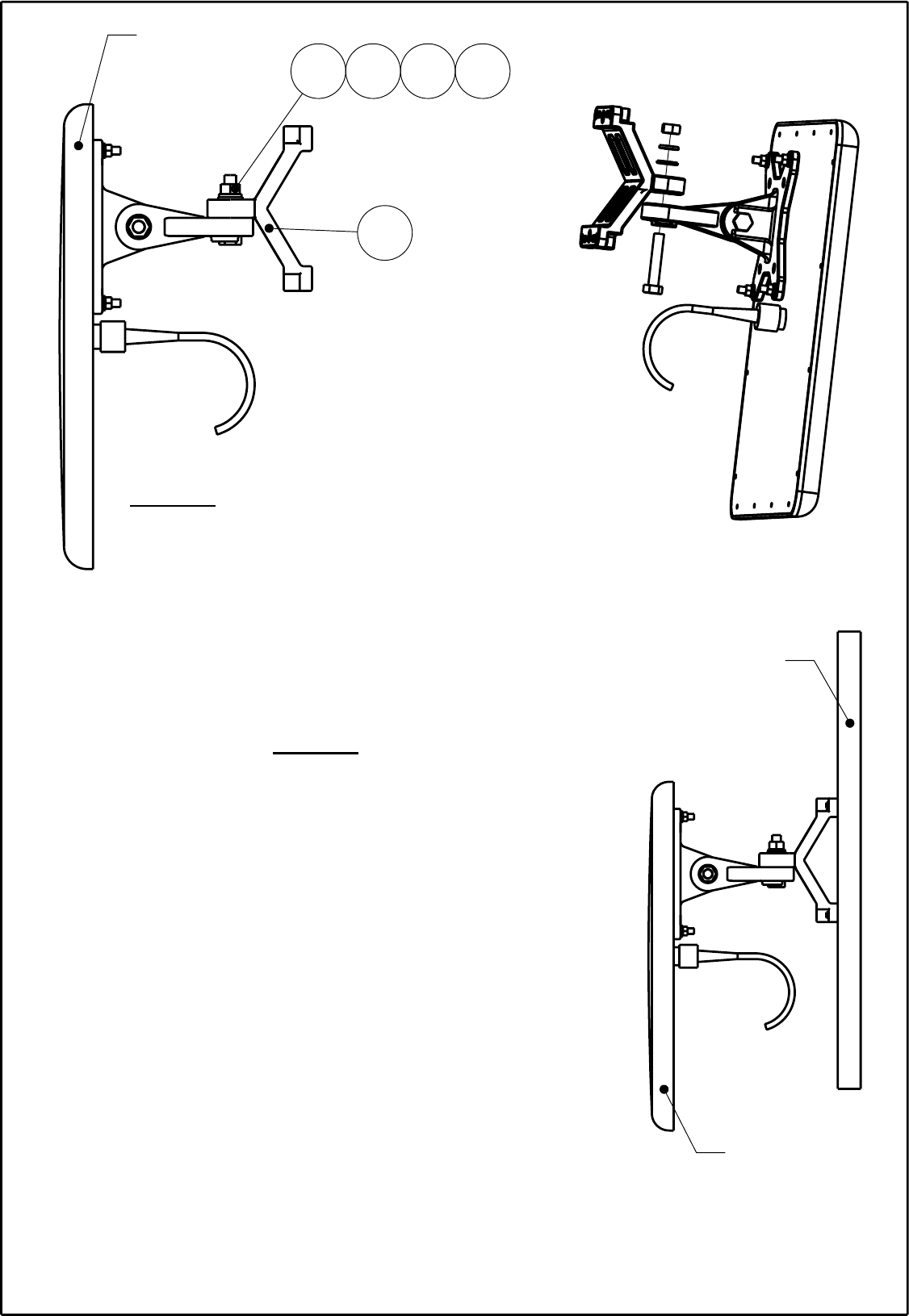

ANTENNA
Attach item 10 to the arm
(mate knurled surfaces)
using items 6 ,7 ,8 ,9 as shown.
Use tightening torque of 24 N/m .
STEP 3
Install ant. to wall
(hardware supplied by customer)
STEP 4
6 7 8 9
10
WALL
ANTENNA
Installation Kit
ITEM DESCRIPTION QTY
1 Base ant. 1
2 Washer flat M5 4
3 Washer spring M5 4
4Nut M5 4
5Arm 1
6 Screw hex head M8x40 2
7 Washer flat M8 2
8 Washer spring M8 2
9Nut M8 2
10 Base wall 1
