Instruction Manual

SHEET 3 OF 4
RD41298500C/REV-H

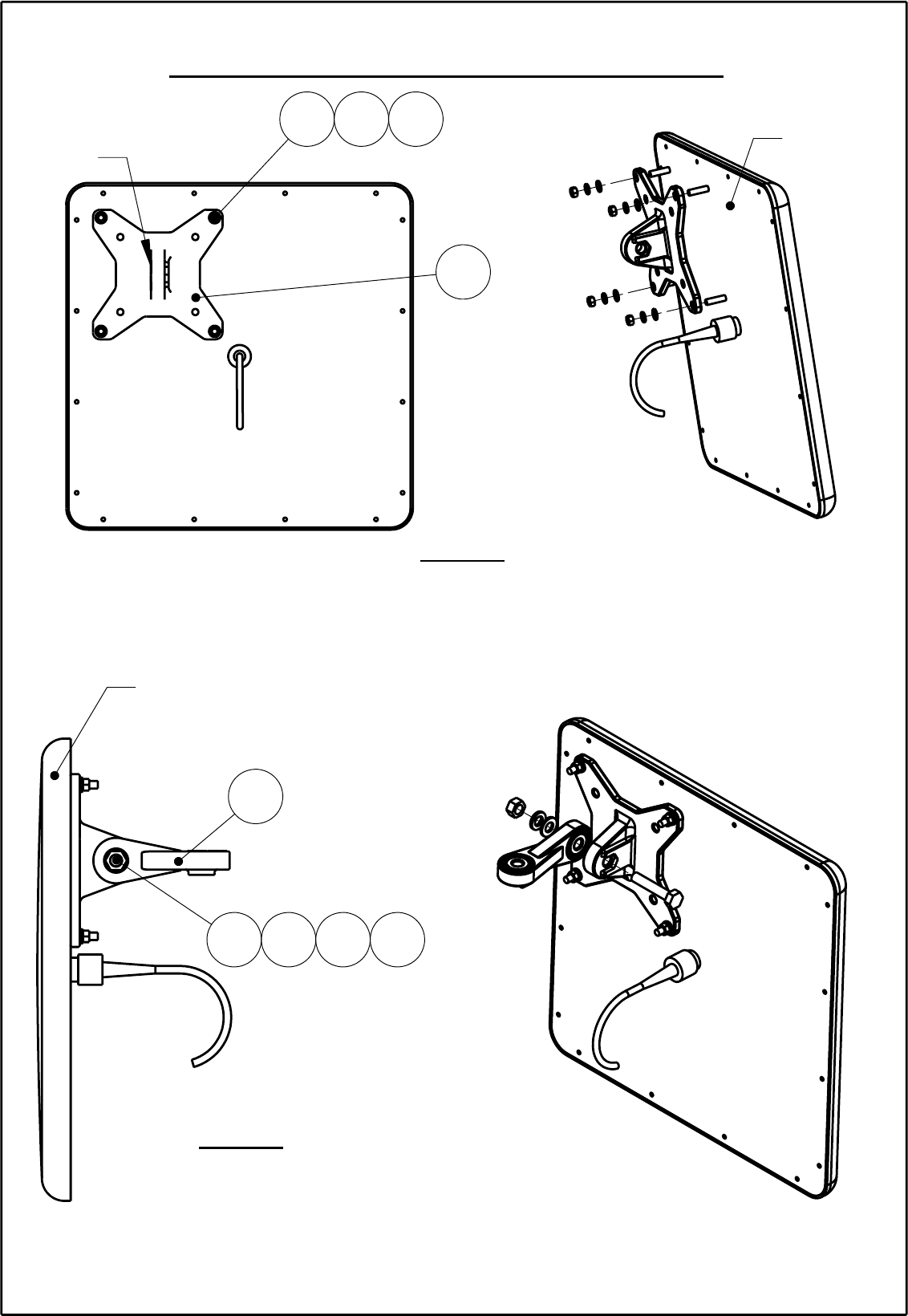

INSTALLATION INSTRUCTIONS TO WALL
ANTENNA
Knurled
surface
Attach item 1 to the back of the antenna
using items 2 ,3, 4 as shown.
Use tightening torque of 5.7 N/m .
STEP 1
2 3 4
1
x4
x4 x4
Attach item 5 to the base
(mate knurled surfaces)
using items 6, 7, 8, 9 as shown.
Use tightening torque of 24 N/m .
STEP 2
ANTENNA
6 7 8 9
5
