Instruction Manual

RD41298500C/REV-H

SHEET 1 OF 4

AL-120018/C INSTALLATION INSTRUCTIONS TO POLE

THIS MOUNTING KIT IS DEFIND ONLY FOR 1"-3" POLE ,

FOR THICKER POLE PLEASE USE

OPTIONAL CLAMPS (NOT INCLUDED)

ANTENNA

Knurled

surface

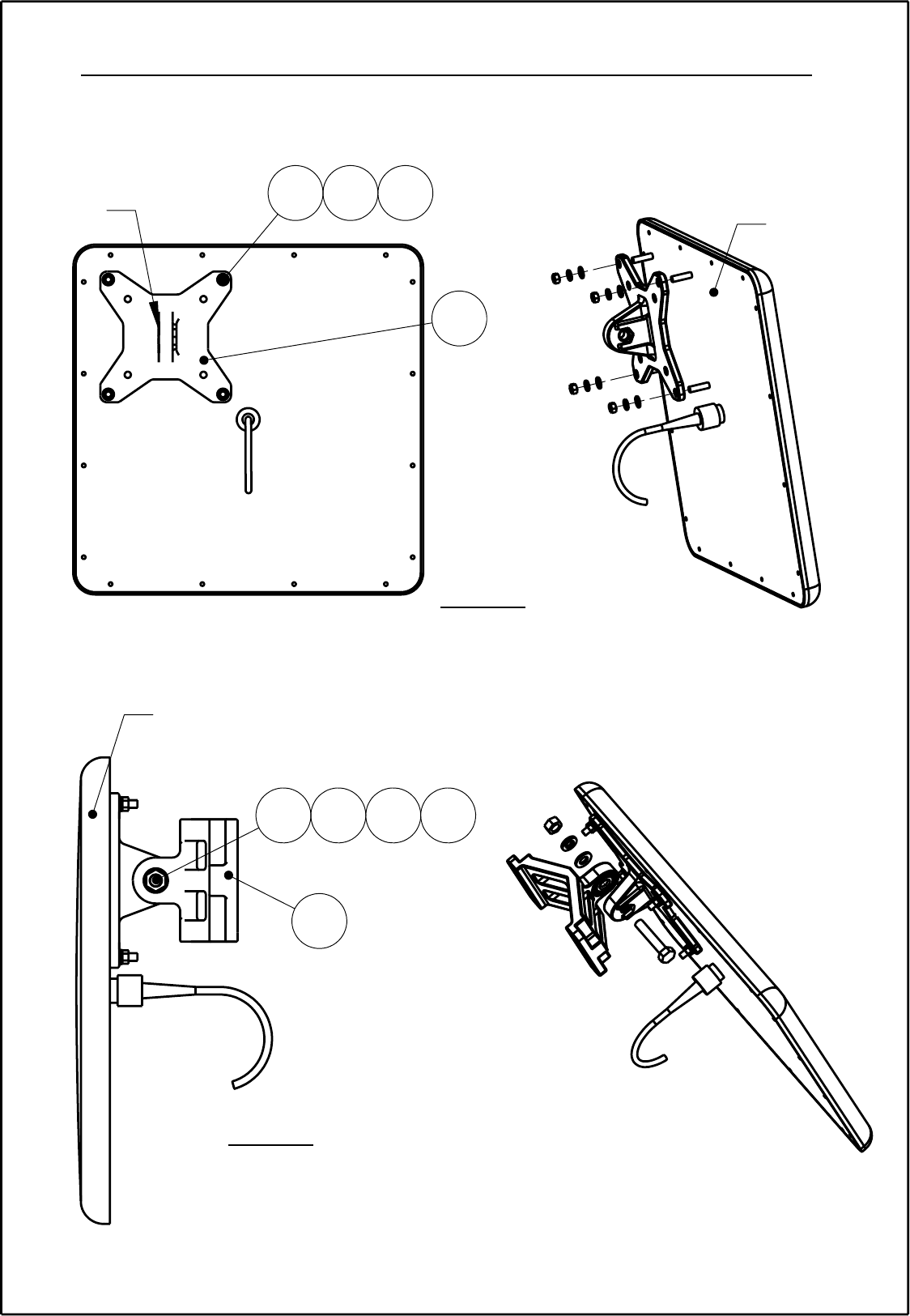

Attach item 1 to the back of the antenna

using items 2 ,3, 4 as shown.

Use tightening torque of 5.7 N/m .

STEP 1

2 3 4

STEP 2

Attach item 5 to the base

(mate knurled surfaces)

using items 6 ,7 ,8 ,9 as shown

Use tightening torque of 24 N/m .

ANTENNA

6 7 8 9

PAGE 1
RD41298500C/REV-H AL-120018/C INSTALLATION INSTRUCTIONS TO POLE THIS MOUNTING KIT IS DEFIND ONLY FOR 1"-3" POLE , FOR THICKER POLE PLEASE USE OPTIONAL CLAMPS (NOT INCLUDED) Knurled surface 2 3 4 x4 x4 x4 ANTENNA 1 STEP 1 Attach item 1 to the back of the antenna using items 2 ,3, 4 as shown. Use tightening torque of 5.7 N/m . ANTENNA 6 7 8 9 5 STEP 2 Attach item 5 to the base (mate knurled surfaces) using items 6 ,7 ,8 ,9 as shown Use tightening torque of 24 N/m .
PAGE 2
RD41298500C/REV-H ANTENNA x2 x2 x2 11 7 8 or 12 10 For pole 1 3/4"-3" STEP 3 Tighten the antenna to the pole , using item 10, screws, and washers items 11 ,7 ,8 as shown. Use tightening torque of 14 N/m . Installation Kit ITEM 1 2 3 4 5 6 7 8 9 10 11 12 DESCRIPTION Base ant.
PAGE 3
RD41298500C/REV-H INSTALLATION INSTRUCTIONS TO WALL Knurled surface 2 3 4 x4 x4 x4 ANTENNA 1 STEP 1 Attach item 1 to the back of the antenna using items 2 ,3, 4 as shown. Use tightening torque of 5.7 N/m . ANTENNA 5 6 7 8 9 STEP 2 Attach item 5 to the base (mate knurled surfaces) using items 6, 7, 8, 9 as shown. Use tightening torque of 24 N/m .
PAGE 4
RD41298500C/REV-H ANTENNA 6 7 8 9 10 STEP 3 Attach item 10 to the arm (mate knurled surfaces) using items 6 ,7 ,8 ,9 as shown. Use tightening torque of 24 N/m . WALL STEP 4 Install ant. to wall (hardware supplied by customer) Installation Kit ITEM 1 2 3 4 5 6 7 8 9 10 DESCRIPTION Base ant.
