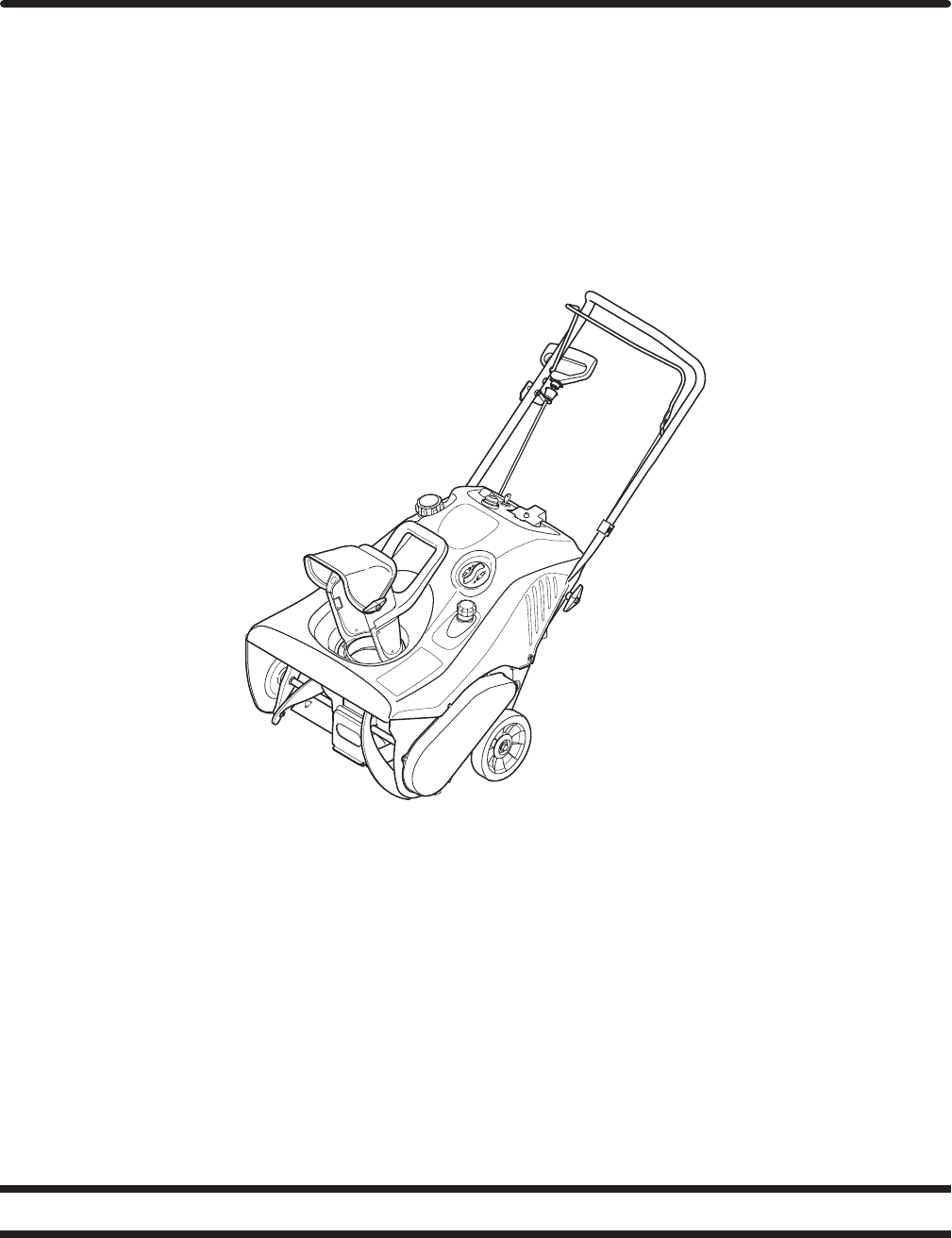

Illustrated Parts Manual Single-Stage Snowthrower — Four-Stroke MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 Printed In USA Form No.
Model 2B5 - Chute & Handle 35 22 36 18 16 24 23 6 5 4 7 25 3 21 2 27 13 15 1 8 12 30 26 33 20 32 34 10 14 9 5 4 19 17 32 28 28 29 30 4 31 30 11
Model 2B5 - Chute & Handle Ref No. Part Number Description 1 684-04127 Chute Assembly (Incl. Ref. 37-41) 2 710-04071 Carriage Bolt 5/16-18 x 1.0” 3 710-0451 Carriage Bolt 5/16-18 x 0.750” 4 712-04063 Flange Lock Nut, 5/16-18 5 720-0284 Wing Knob 6 731-04388A Chute Handle 7 731-04426A Upper Chute 8 731-04353 Ring-Lower Chute 9 710-04532 Carriage Bolt 5/16-18 x 2.0 Gr.
Model 2B5 - Auger & Drive System 18 14 17 8 23 10 16 7 1 6 11 5 25 24 32 39 40 12 51 49 50 31 44 15 2 7 27 34 29 46 29 41 42 28 30 45 9 43 35 38 48 36 20 13 22 4 3 26 21 19 37 47 29 33
Model 2B5 - Auger & Drive System Ref No. Part Number Description Ref No. Part Number Description 1 629-0071 Extension Cord 27 684-04168 Idler Pulley (1/4” hole) 2 710-0409 Hex Screw, 5/16-24 x 1.75 28 735-04033 Rubber Paddle 3 710-0627 Hex Screw, 5/16-24 x .75 29 710-0896 Hex Screw, 1/4-20 x .62 4 710-0654A Self Tapping Screw, 3/8-16 x 1 30 735-04032 Cresent Spiral 5 710-0751 Hex Screw, 1/4-20 x .62 31 684-04253 Auger Assembly 6 710-1003 Screw, #10-16 x .
Notes
