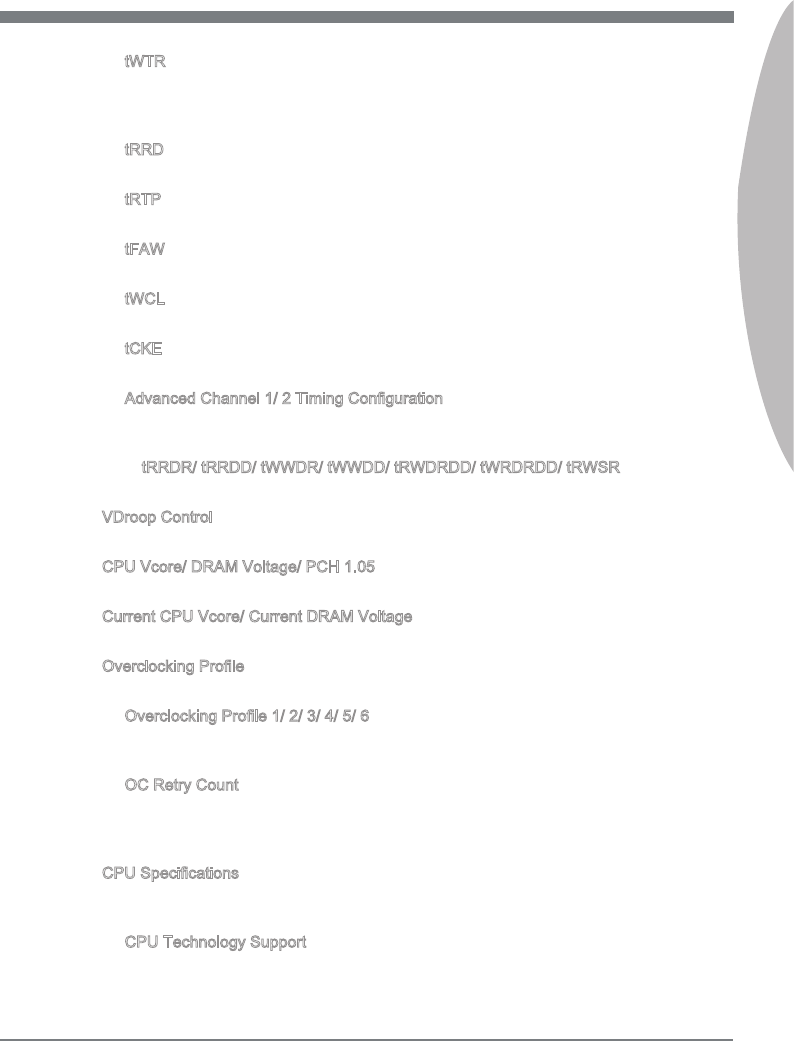

tWTR
Minimum time interval between the end of write data burst and the start of a col-
umn-read command. It allows I/O gating to overdrive sense ampliers before read
command starts.
tRRD
Species the active-to-active delay of dierent banks.
tRTP
Time interval between a read and a precharge command.
tFAW
This item is used to set the tFAW (four activate window delay) timing.
tWCL
This item is used to set the tWCL (Write CAS Latency) timing.
tCKE
This item is used to set the tCKE timing.
Advanced Channel 1/ 2 Timing Conguration
Press <Enter> to enter the sub-menu. And you can set the advanced memory timing
for each channel.
tRRDR/ tRRDD/ tWWDR/ tWWDD/ tRWDRDD/ tWRDRDD/ tRWSR
These items is used to set the memory timings for memory channel 1/ 2.
VDroop Control
This item is used to select the VDroop control mode.
CPU Vcore/ DRAM Voltage/ PCH 1.05
These items are used to adjust the voltage of CPU, Memory and chipset.
Current CPU Vcore/ Current DRAM Voltage
These items show current CPU Vcore/ DRAM voltage. Read-only.
Overclocking Prole
Press <Enter> to enter the sub-menu.
Overclocking Prole 1/ 2/ 3/ 4/ 5/ 6
Press <Enter> to enter the sub-menu. In the sub-menu, these items are used to save
the current settings, and you can to load the settings from the stored prole.
OC Retry Count
When overclocking has failed, setting this item as [1, 3] will allow system to reboot
1/ 3 times with the same overclocked conguration. If overclocking has failed every
time, the system will restore the defaults.
CPU Specications
Press <Enter> to enter the sub-menu. The submenu shows the information of installed
CPU.
CPU Technology Support
Press <Enter> to enter the sub-menu. The sub-menu shows the installed CPU tech-
nologies. Read only.
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
▶
