61
UEFI BIOS

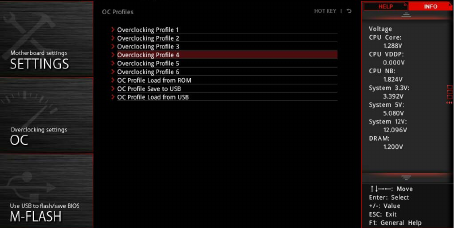

OC PROFILE Menu
This menu allows you to set the BIOS profiles.
▶ Overclocking Prole 1/ 2/ 3/ 4/ 5/ 6
Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6 management. Press Enter to enter the sub-menu.
▶ Set Name for Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6
▶ Save Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6
▶ Load Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6
▶ Clear Overclocking Profile 1/ 2/ 3/ 4/ 5/ 6
▶ OC Prole Load from ROM
Load OC profile from BIOS ROM.
▶ OC Prole Save to USB
Save OC profile to the USB flash drive. The USB flash drive should be FAT/ FAT32
format only.
▶ OC Prole Load from USB
Load OC profile from the USB flash drive. The USB flash drive should be FAT/ FAT32
format only.
