33
Overview of Components

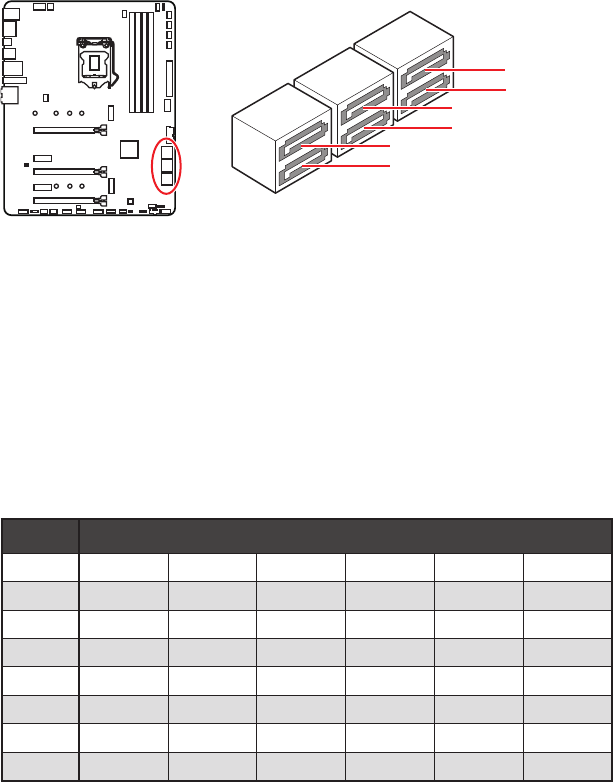

SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA1
SATA3
SATA5
SATA2
SATA4
SATA6
⚠
Important
∙
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
∙
SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
∙
SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
∙
SATA5 & SATA6 will be unavailable when installing M.2 SSD in the M2_2 slot.
M.2 and SATA combination table
Slot Combination
M2_1 SATA SATA PCIe PCIe SATA PCIe
M2_2 SATA PCIe SATA PCIe
SATA1
SATA2
SATA3
SATA4
SATA5
SATA6
