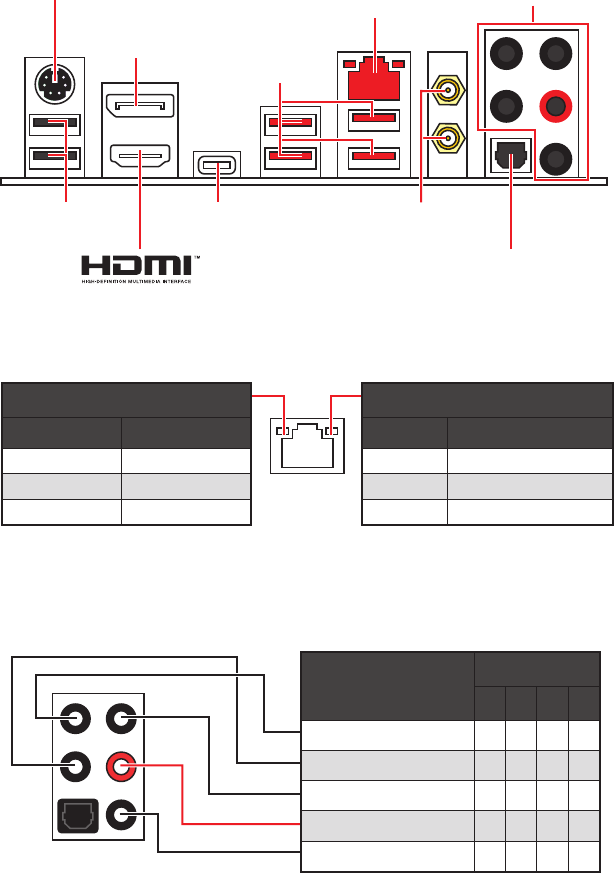

Rear I/O Panel
USB 3.2 Gen 2x2
(20Gbps) Type-C
Audio Ports Configuration
Rear I/O Panel
PS/2 Combo port
2.5 Gbps LAN
DisplayPort
USB 2.0 Type-A
Audio Ports
Optical
S/PDIF-Out
Wi-Fi Antenna
connectors
USB 3.2 Gen 2
(10Gbps) Type-A
Link/ Activity LED
Status Description
Off No link
Yellow (2.5Gb LAN) Linked
Blinking Data activity
Speed LED
Status 2.5 Gbps LAN
Off 10 Mbps
Green 100 Mbps/ 1 Gbps
Orange 2.5 Gbps
LAN Port LED Status Table
Audio Ports
Channel
2 4 6 8
Center/ Subwoofer Out
Rear Speaker Out
Line-In/ Side Speaker Out
Line-Out/ Front Speaker Out
Mic In
(: connected, Blank: empty)
