Note: MSD 6 a nd 7 Series Igni tions
share the same color wiring.

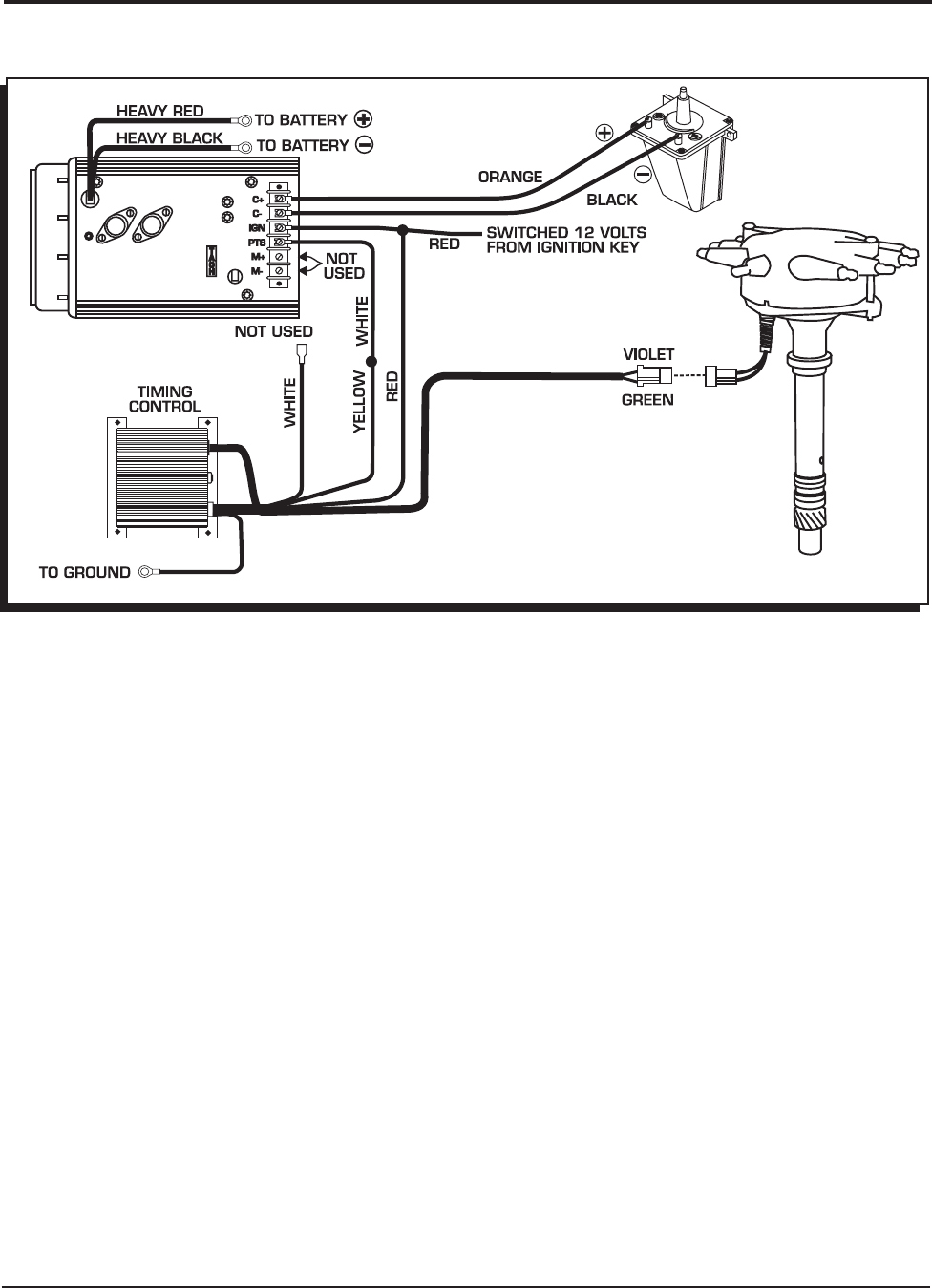

Figure 12 Wiring with an MSD 7-Series Ignition and Timing Control.
