INSTALLATION INSTRUCTIONS 7
M S D • W W W . M S D P E R F O R M A N C E . C O M • ( 9 1 5 ) 8 5 7 - 5 2 0 0 • F A X ( 9 1 5 ) 8 5 7 - 3 3 4 4

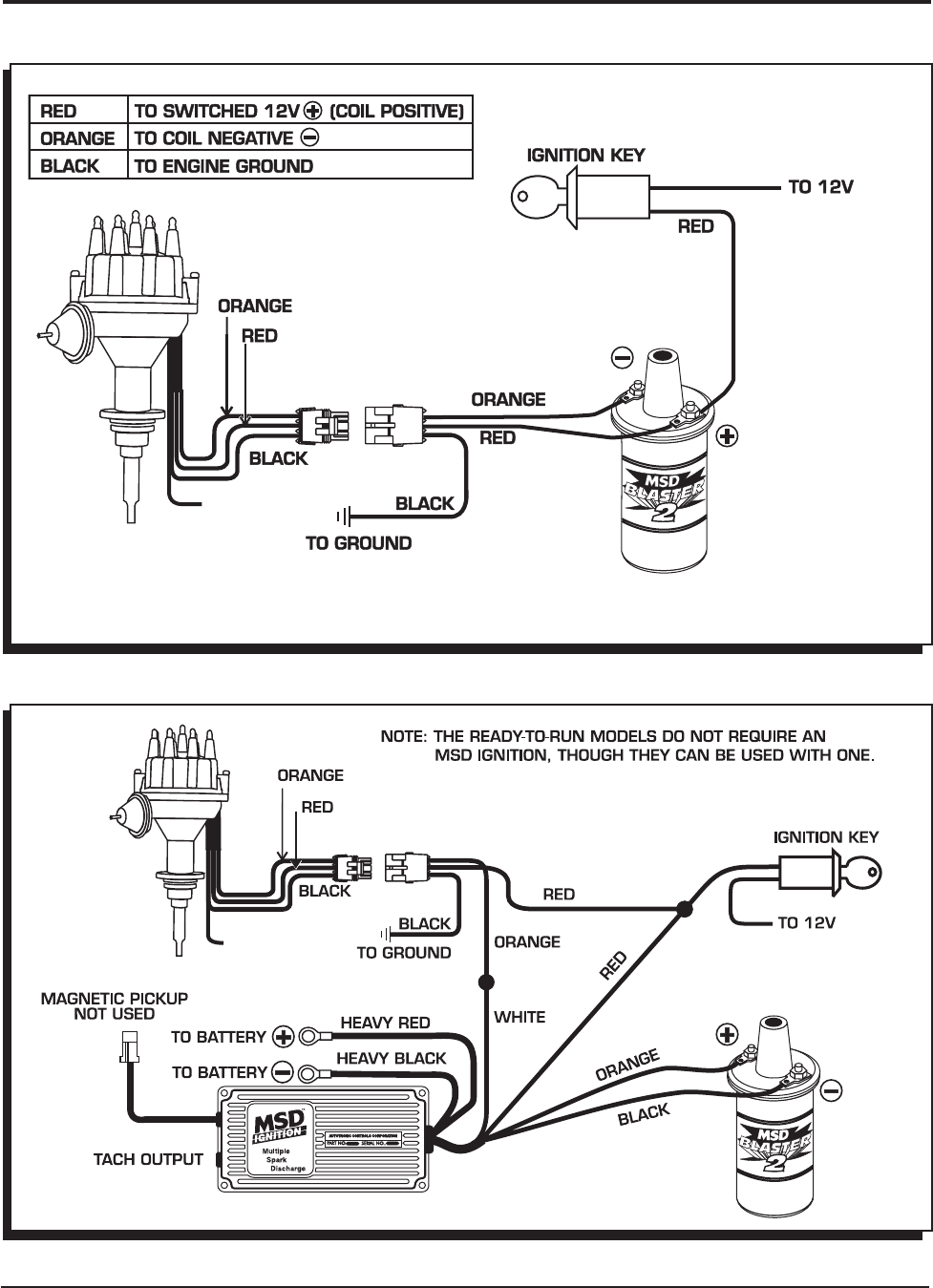

Figure 12 Wiring the Ready-to-Run Chrysler Distributor.
GRAY TO
TACH INPUT
GRAY TO
TACH INPUT
Figure 13 Connecting an MSD Ignition Control.
