CENTRIFUGAL ADVANCE CURVE
SELECTING THE ADVANCE SPRINGS
The rate, or how quick the advance c omes in
is determined by the type of springs which are
installed on the distributor. The MSD distributors
are equipped with two Heavy Silver springs
installed. These will give you the slowest
advance curve possible. The parts kit contains
two additional sets of springs which can be used
to ma tch the advance curve to your particular
application. Refer to th e Spr ing Combination
Chart (Figure 3) for combinations that can be
achieved.
To change the springs, remove the cap and rotor
and use needlenose pliers to remove the springs.
Be sure the new springs seat in the groove on
the pin.

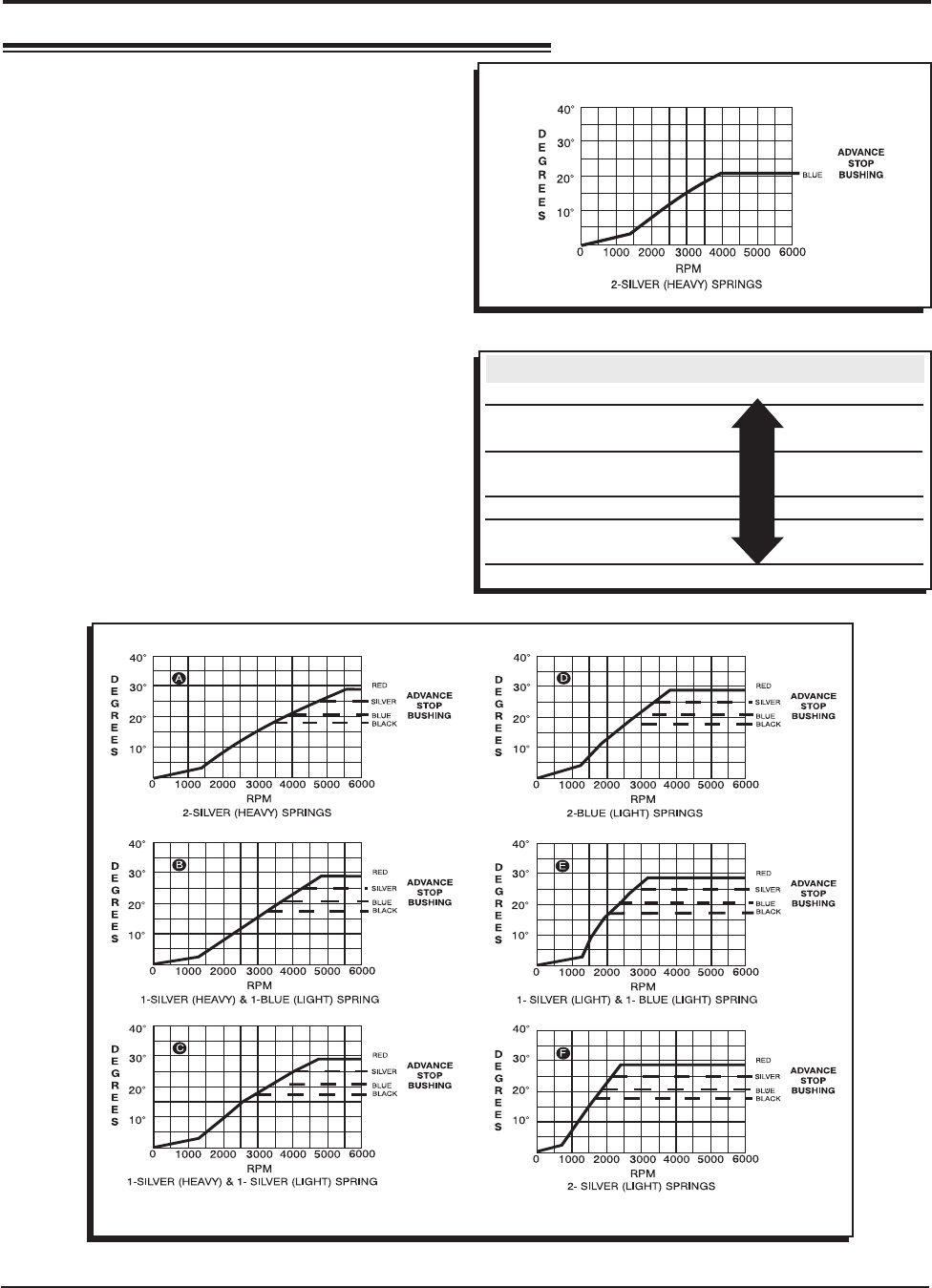

Figure 2 The Factory Equipped Curve.
Timing Curve From Factory
SPRING COMBINATION RATE OF ADVANCE FIGURE 4
2- Heavy Silver SLOWEST A
1- Heavy Silver B
1- Light Blue
1-Heavy Silver C
1-Light Silver
2- Light Blue D
1- Light Silver E
1- Light Blue
2- Light Silver FASTEST F
Figure 3 Spring Combination Chart.
Figure 4 Advance Curves.
