Installation Guide

38
I&O manual
14.7 Before Leaving An Installation
• Cycle the furnace with the thermostat at least three times.
Verify cooling and fan only operation.
• Review the Owner's Manual with the homeowner and
discuss proper furnace operation and maintenance.
• Leave literature packet near furnace.
14.8 Repair And Replacement Parts
14.6 CONDENSATE TRAP AND DRAIN SYSTEM
(QUALIFIED SERVICER ONLY)
• When ordering any of the listed functional parts, be sure to
provide the furnace model, manufacturing, and serial
numbers with the order.
• Although only functional parts are shown in the parts list,
all sheet metal parts, doors, etc. may be ordered by
description.
• Parts are available from your distributor. (See Fig . 38)
Annually inspect the drain tubes, drain trap, and field-supplied drain
line for proper condensate drainage. Check drain system for hose
connection tightness, blockage, and leaks. Clean or repair as
necessary.

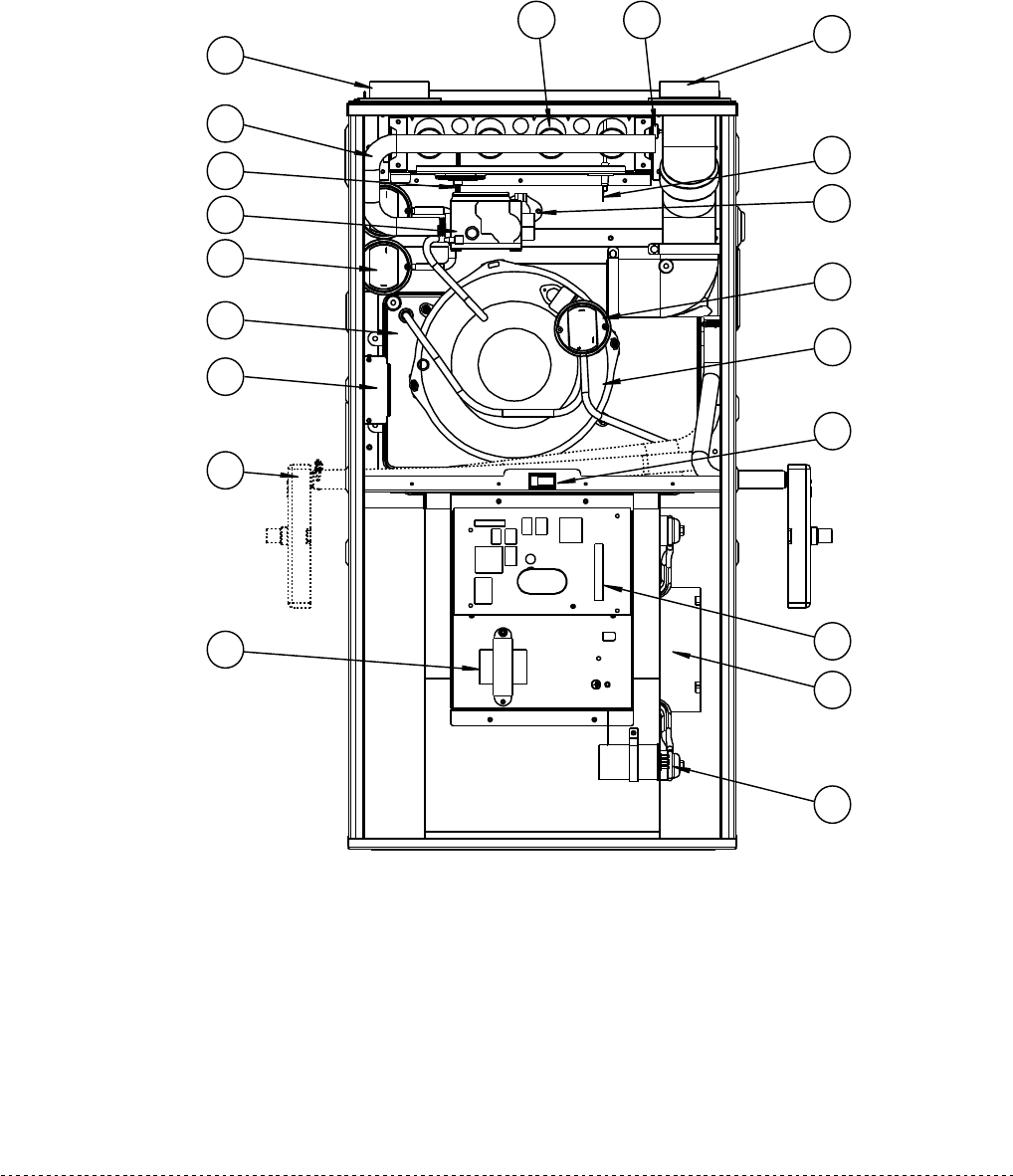

Fig. 38 Component Identification
COMPONENT IDENTIFICATION:
1. Outlet Vent
2. Flame Sensor
3. Primary Limit Switch
4. Pressure Switch
5. Two-Stage Inducer
6. Door Switch
7. Integrated Contol Module
8. Circulator Blower
9. Capacitor
10.Transformer
11.Condensate Trap
12.Juction Box
13.Condensate Collector
14.Pressure Switch
15. Two-Stage Gas Valve
16. Mini Ignitor
17. G]as Manifolding
18. Air Inlet
19. Burner
20. Rollout Limit Switch
Please contact your local installer or dealer for replacement parts.
1
2
3
4
5
6
8
9
7
10
11
12
13
14
15
16
17
18
19 20
