Installation manual

Page 12
4in (101mm)
7.05in (179mm)
5.35in (136mm)
1.45in (37mm)
11.4in (290mm)
1.95in (49mm)
Left rear wall
hole 2.5in (65mm)
Right rear wall
hole 2.5in (65mm)
Indoor unit outline
Model A
28.45in (722mm)
1.95in (49mm)
7.55in (192mm)
9.15in (232mm)
16.8in (426mm)
5.05in (128mm)
1.7in (43mm)
11.7in (297mm)
Left rear wall
hole 2.5in (65mm)
Right rear wall
hole 2.5in (65mm)
Indoor unit outline
Model B
31.6in (802mm)
1.7in (43mm)
1.7in (43mm)
5.65in (144mm)
2.3in (58mm)
12.55in (319mm)
2.25in (57mm)
1.55in (40mm)
Left rear wall
hole 2.5in (65mm)
Right rear wall
hole 2.5in (65mm)
Model C
38in (965mm)
5.45in (138mm)
1.35in (34mm)
Indoor unit outline
8.6in (219mm)
21.77in (553mm)
11.8in (300mm)
13.2in (335mm)
Left rear wall
hole 2.5in (65mm)
Right rear wall
hole 2.5in (65mm)
Model D
42.5in (1080mm)
2.1in
(53.5mm)
1.85in (47mm)
3in (76mm)
2.1in (53.5mm)
1.85in (47mm)
5.85in
(148.7mm)
5.95in (151mm)
6.85in (174.3mm)
Indoor unit outline
6.8in (172mm)
14.25in (362mm)
Left rear wall
hole 2.5in (65mm)
Right rear wall
hole 2.5in (65mm)
Model E
49.55in (1259mm)
Indoor unit outline
2.05in (52mm)
15.3in (389mm)
13.05in (332mm)
10.1in (257mm)
25.3in (643.6mm)
2.05in (52mm)
Wall
Indoor Outdoor
mm7-5
)
0.2 - 0.3in
(

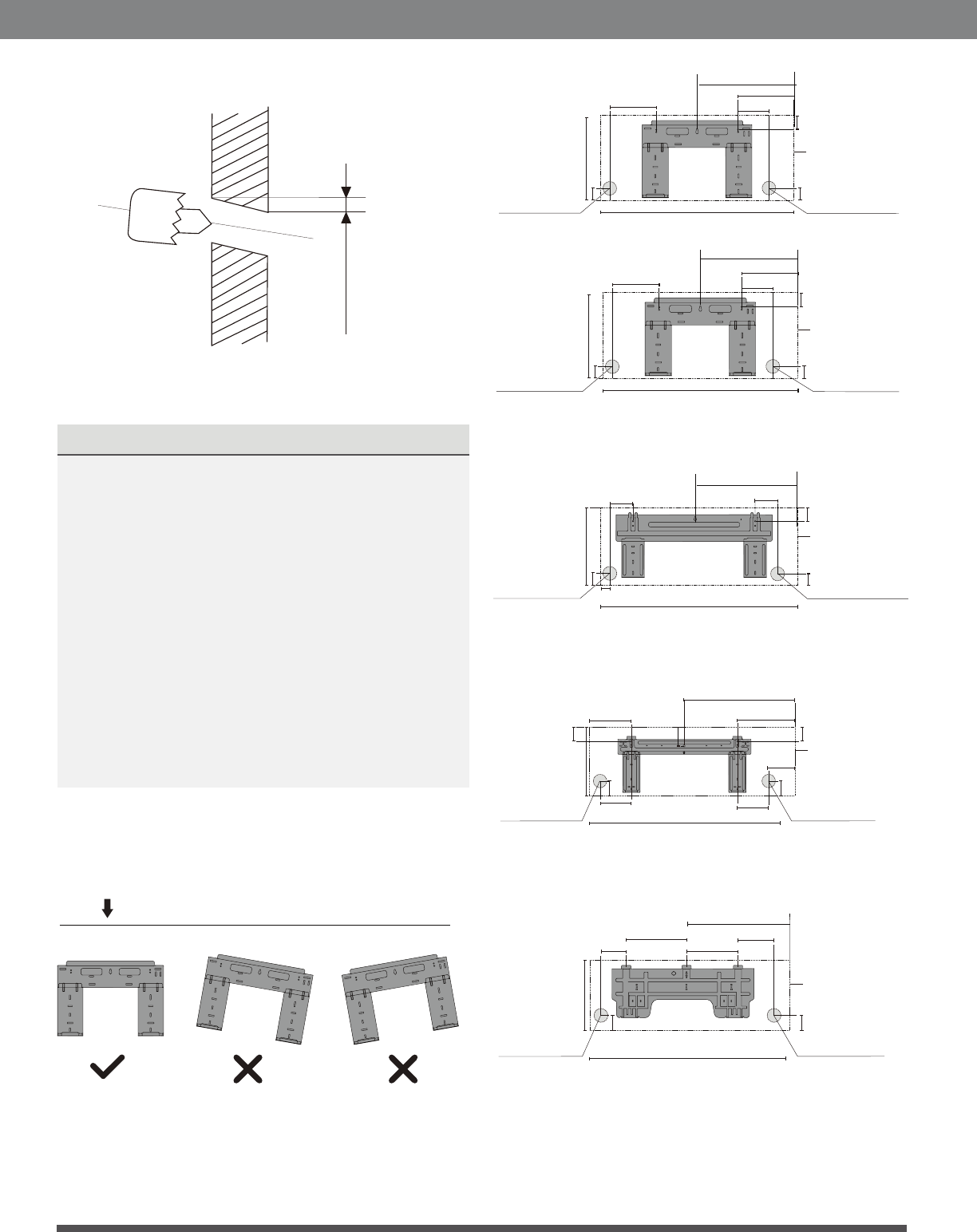

Fig.3.2
MOUNTING PLATE DIMENSIONS
Different models have different mounting plates.
In order to ensure that you have ample room to
mount the indoor unit, the diagrams to the right
show different types of mounting plates along
with the following dimensions:
• Width of mounting plate
• Height of mounting plate
• Width of indoor unit relative to plate
• Height of indoor unit relative to plate
• Recommended position of wall hole (both
to the left and right of mounting plate)
• Relative distances between screw holes
Fig. 3.2
Correct orientation of Mounting Plate
20.37in (517.4mm)
13.7in (348.4mm)
Indoor Unit Installation
