Installation Guide

INSTALLER
Route cable
through
slot
All drawings are for illustrative purposes only.
Connecting the ChromaSteam3 Fixture
to the ChromaSteam3 Control Box
• Shock Hazard. Ensure that power is turned off during installation. Turn off power at breaker panel.
• Shock Hazard. To prevent electric shock, do not remove the screws on the back of the control box. No user-ser-
viceable parts inside. Refer servicing to qualified service personnel only.
At this point in the installation:
• For installation with one ChromaSteam3, the ChromaSteam3 fixture’s pigtail has been connected to one end of
the 30-foot control cable (see page 8), and the other end has been routed through conduit so that it is located
for connection to the control box.
• For installation with two ChromaSteam3, the longer end of Duo cable (with a yellow flag stating “To fixture”) has
been routed through conduit, the ChromaSteam3 fixture’s pigtail has been connected to the longer end of Duo
cable (with a yellow flag stating “To Fixture”), one end of 30-foot control cable has been located for connection
to the control box. Connect the shorter end of Duo cable (with a yellow flag stating “To 30’/60’ Cable”) to the
other end of the 30-foot control cable.
1. Using a Phillips-head screwdriver, remove the two cover screws from the front of the ChromaSteam3 control box
(Figure 15), and remove the cover from the unit (Figure 16).
2. Insert the free end of the control cable into the control box’s LED receptacle (Figure 17).
3. Route the control cable through an empty slot in the lower portion of the control box’s housing (Figure 18).
4. Replace and secure the control box cover using the two cover screws.
WARNING
!

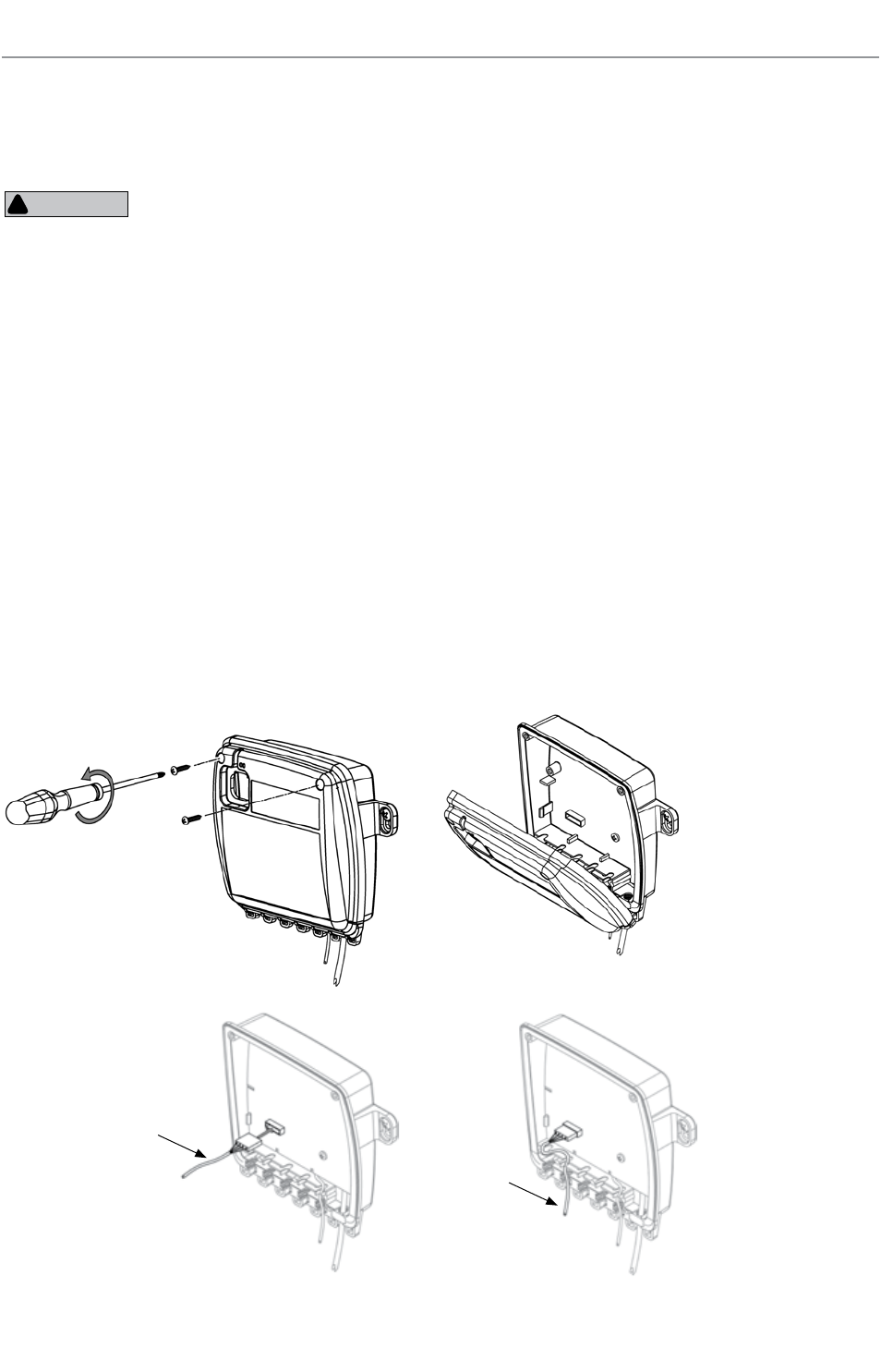

Figure 15 Figure 16
Figure 17 Figure 18
Insert control
cable into LED
receptacle
mr
.
steam
®
INSTALLATION, OPERATION, AND MAINTENANCE ChromaSteam
®
3
