OnCell G3111/G3151/G3211/G3251 Series User’s Manual Serial Port Operation Modes
8-2
Port Setting Basics
To configure the operation mode and settings for a port, expand Serial Port Settings in the
navigation panel, and then expand the port that you would like to configure. Individual port settings
are grouped into three categories in the navigation panel: Operation Modes, Communication
Parameters, and Data Buffering/Log.

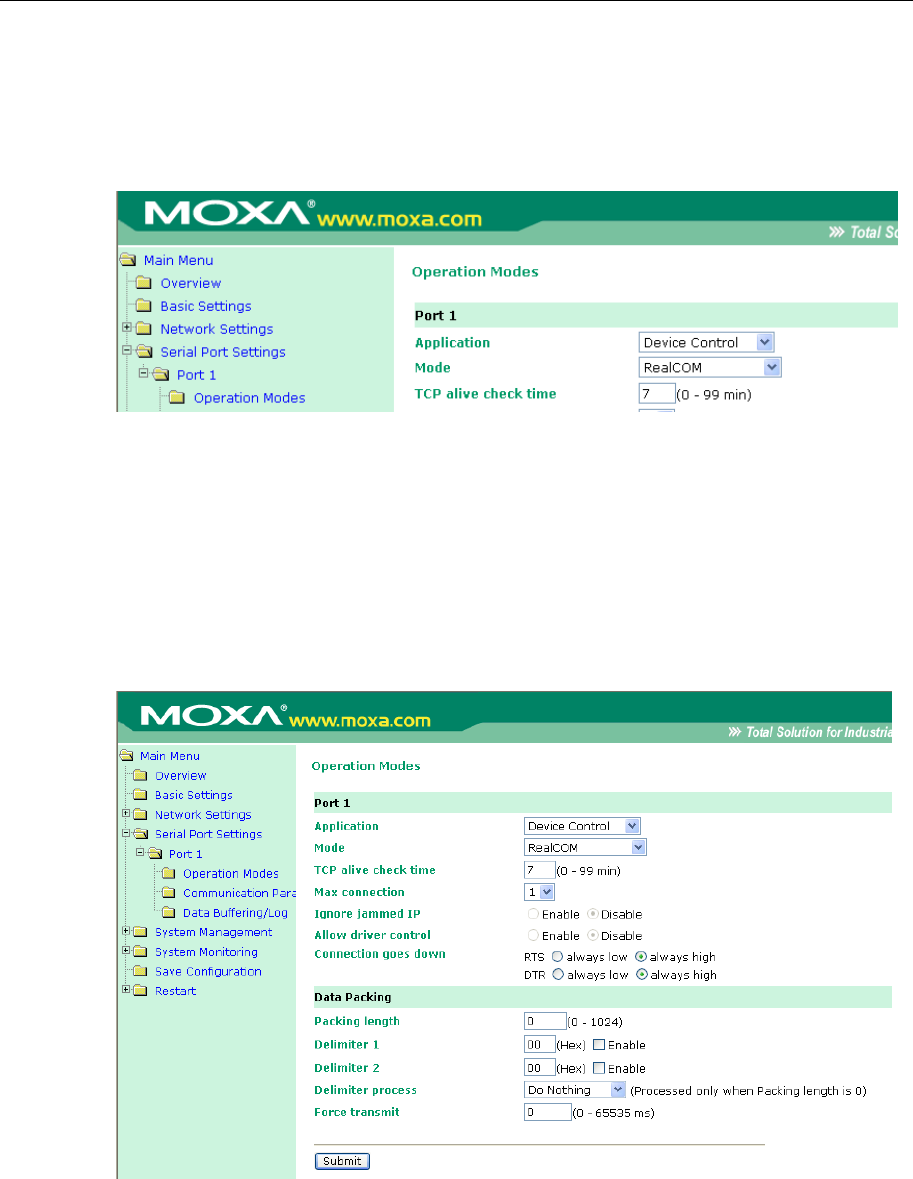

Select Operation Modes in the navigation panel to select and configure the mode for each serial
port.
Application: Select an application for the serial port from among the choices. Your application will
determine the modes that are available.
Mode: Once you have chosen an application, select the mode. The available configuration settings
will vary depending on the mode that you have selected.
Device Control Applications
Real COM Mode
