OnCell G3111/G3151/G3211/G3251 Series User’s Manual Serial Port Operation Modes
4-5
Reverse Real COM Modes
The OnCell G3111/G3151/G3211/G3251 comes bundled with Moxa drivers for Windows
98/ME/NT/2000/XP/2003/2008/Vista systems and TTY drivers for Linux and Unix systems.
(For Windows systems, this option is only supported for Windows 2000, XP x86/x64, 2003
x86/x64, Vista x86/x64, and 2008 x86/x64.)
Reverse Real COM mode uses a mechanism similar to port mapping to enable your remote
device that is using a private IP address to remain accessible to external hosts. When this
mode is enabled, the Moxa driver that comes with the device establishes a transparent
connection from the device to the remote host by mapping the device’s serial port to a local
COM port on the remote host. Reverse Real COM mode supports up to 2 simultaneous
connections that enable serial devices to send data to 2 hosts simultaneously.

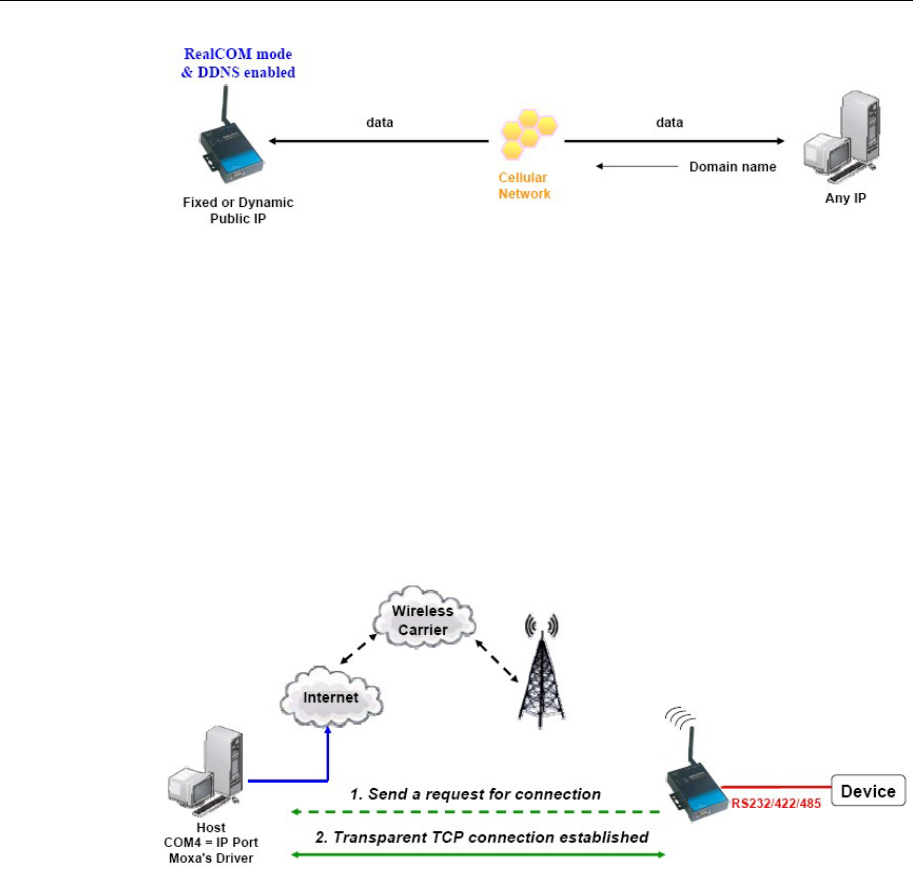

Types of Reverse Real COM Connection
1. Reverse RealCOM to PC’s IP address.
Most cellular service providers only provide customers with a dynamic private IP address,
which means that the OnCell G3111/G3151/G3211/G3251 will only obtain an IP address once
it is connected to the cellular network. Reverse RealCOM is a great feature that allows a PC
host to access an OnCell G3111/G3151/G3211/G3251 configured with a private IP address.
