OnCell G3111/G3151/G3211/G3251 Series User’s Manual Initial IP Address Configuration
3-5

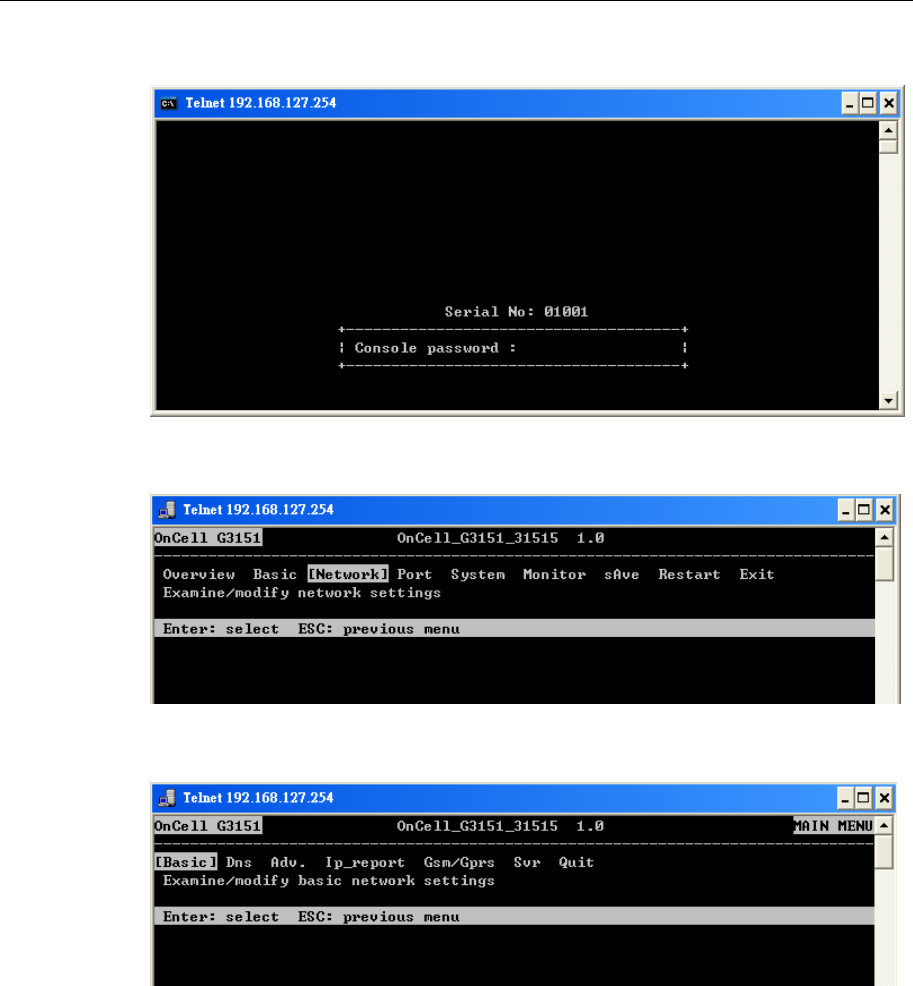

3. The following page will only appear if the OnCell G3111/G3151/G3211/G3251 is password
protected. Enter the console password if you are prompted to do so, and then press ENTER.
4. Press N or use the arrow keys to select Network, and then press ENTER.
5. Press B or use the arrow keys to select Basic, and then press ENTER.
