OnCell G3111/G3151/G3211/G3251 Series User’s Manual System Management Settings
12-13
Configuration Import/Export
The OnCell G3111/G3151/G3211/G3251 can share or back up its configuration by exporting all
settings to a file.

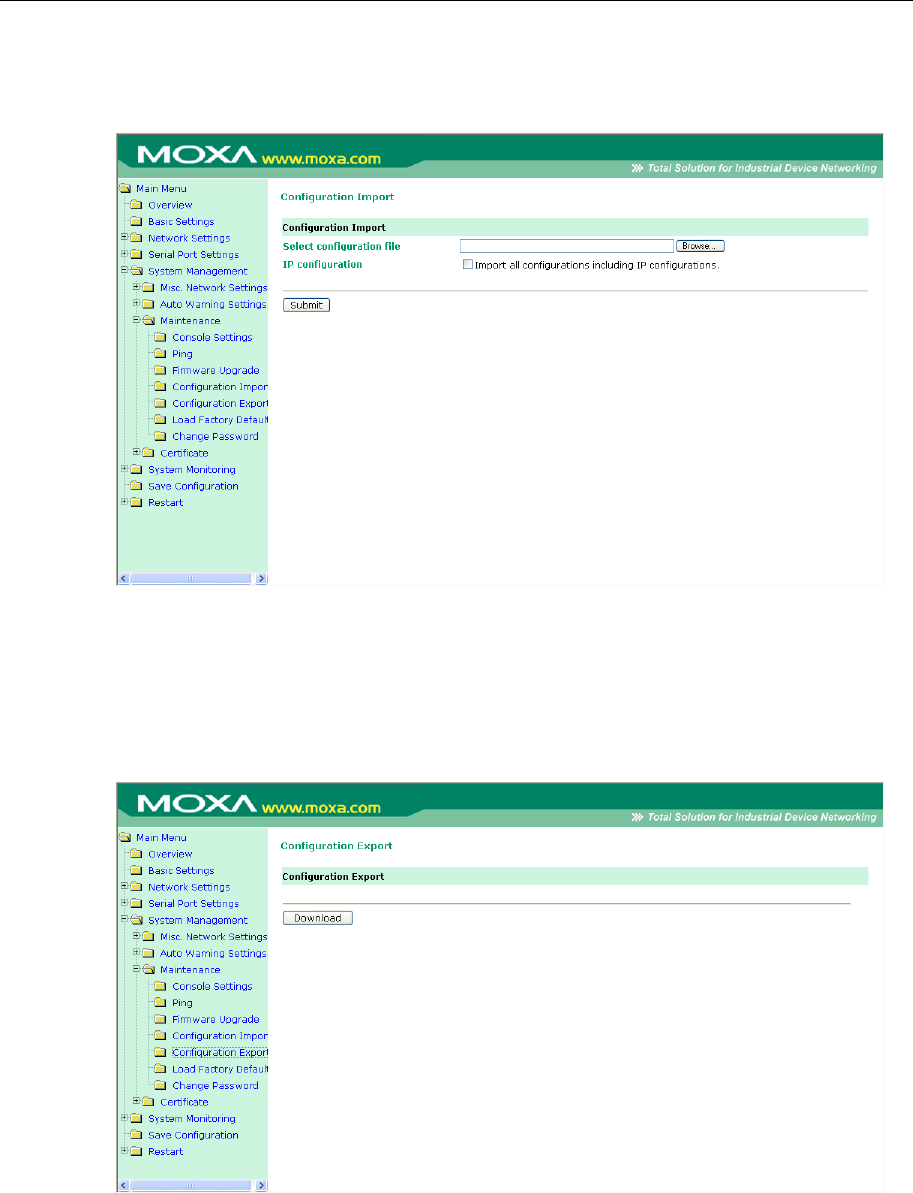

To import a configuration, go to System Management
Maintenance Configuration Import.
Enter the configuration file path/name and click Submit. The OnCell
G3111/G3151/G3211/G3251’s configuration settings will be updated according to the configuration
file. If you also wish to import the IP configuration (i.e., the OnCell G3111/G3151/G3211/G3251’s
IP address, netmask, gateway, etc.), make sure that Import all configurations including IP
configurations is checked on.
To export a configuration, go to System Management
Maintenance Configuration Export
and click Download. A standard download window will appear, and you will be able to download
the configuration into a file name and location of your choice.
