OnCell G3111/G3151/G3211/G3251 Series User’s Manual System Management Settings
12-5

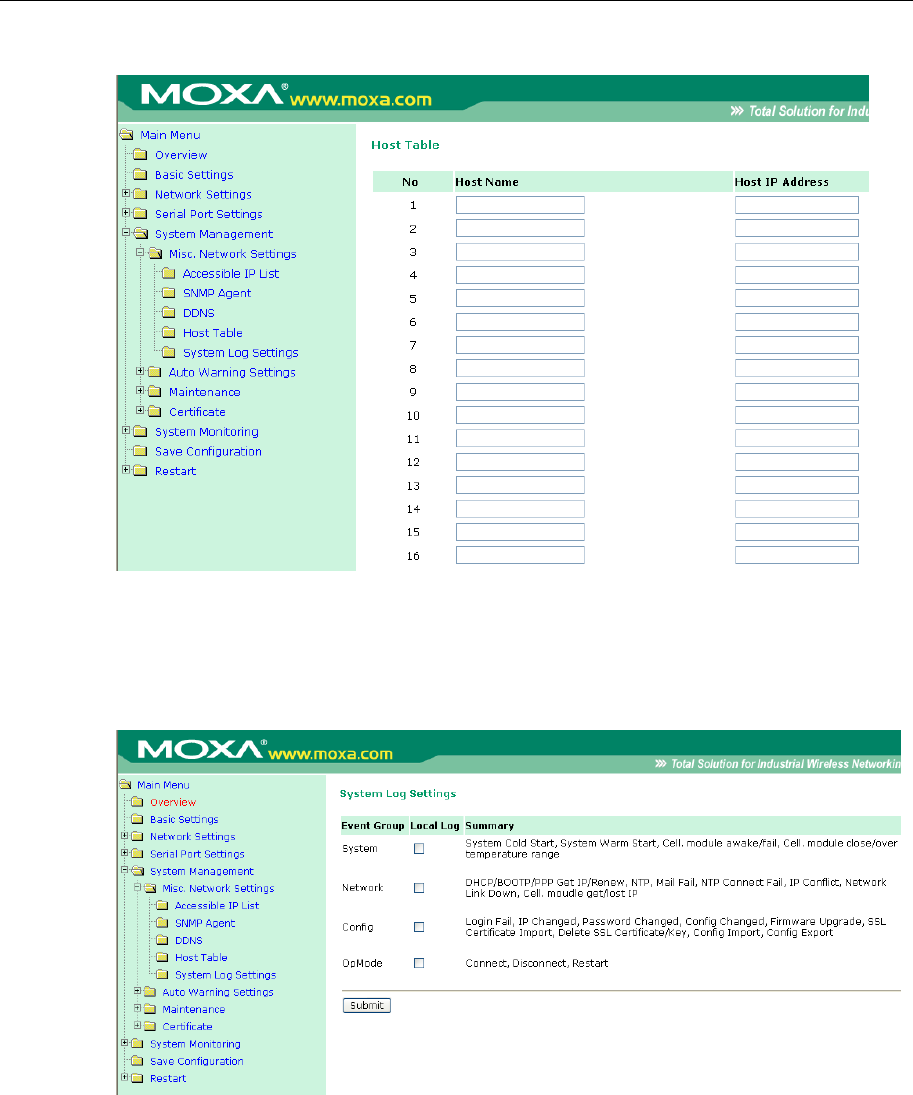

Host Table
The Host Table can be used to simplify IP address entry in the OnCell G3111/G3151/G3211/G3251
console by assigning a Host Name to a Host IP Address. When you assign a Host Name to a Host IP
Address, you can then use the Host Name for some fields on the console rather than entering the IP
address. Up to 16 entries can be stored in the Host Table.
System Log Settings
System Log Settings allows the administrator to customize which network events are logged by the
OnCell G3111/G3151/G3211/G3251. Events are grouped into five categories, known as event
groups, and the administrator selects which groups to log under Local Log. The actual system events
that would be logged for each system group are listed under summary. For example, if System was
enabled, then System Cold Start events and System Warm Start events would be logged.
