User Manual

- 3 -
LED
Color
Function
PBM
Green
Steady on: PROFIBUS master is in OPERATE mode
Blinking: PROFIBUS master is in CLEAR mode
Red
PROFIBUS master is in STOP mode
Off
PROFIBUS master is offline
PN
Green
Steady on: PROFINET I/O is connected and controller
is in RUN mode
Blinking: PROFINET I/O is connected but controller is
in STOP mode
Off
No connection with I/O Controller
Ethernet
Amber
Steady: 10 Mbps, no data is transmitting
Blinking: 10 Mbps, data is transmitting
Green
Steady: 100 Mbps, no data is transmitting
Blinking: 100 Mbps, data is transmitting
Off
Ethernet cable is disconnected

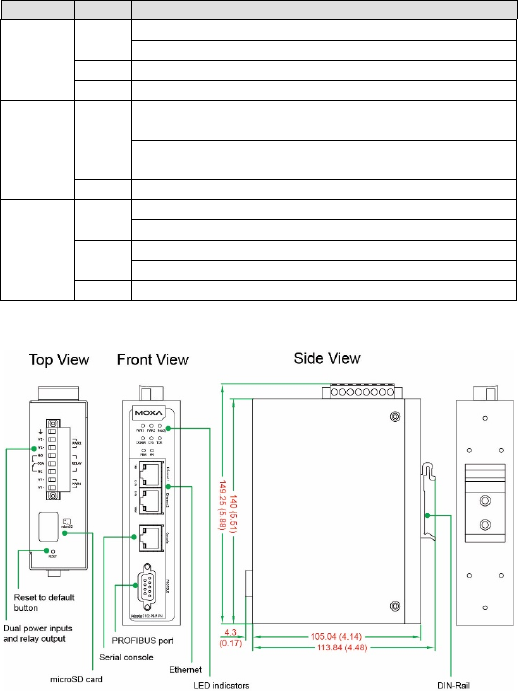

Dimensions
Reset Button
The reset button is used to load factory defaults. Use a pointed object
such as a straightened paper clip to hold the reset button in for five
seconds. Release the reset button when the Ready LED stops blinking.
Hardware Installation Procedure
1. Connect the power adapter. Connect the 12-48 VDC power line or
DIN-rail power supply to the MGate 5102-PBM-PN’s terminal block.
Make sure the adapter is connected to an earthed socket.
2. Use a PROFIBUS cable to connect the unit to a PROFIBUS slave
device.
3. Connect the unit to the PROFINET I/O controller.
4. The MGate 5102-PBM-PN is designed to be attached to a DIN rail or
mounted on a wall. For DIN-rail mounting, push down the spring and
properly attach it to the DIN rail until it “snaps” into place. For wall
mounting, install the wall-mount kit (optional) first and then screw
the device onto the wall.
