Industrial Ethernet Solutions
© Moxa Inc. All Rights Reserved. Updated Sep. 8, 2010. Specifications subject to change without notice. Please visit our website for the most up-to-date product information.
Ordering Information
Available Models Port Interface
Standard Temperature
(-10 to 60˚C)
Wide Temperature
(-40 to 75˚C)
10/100BaseT(X)
100BaseFX
Multi-mode,
SC Connector
Multi-mode,
ST Connector
Single-mode,
SC Connector
EDS-205A EDS-205A-T
5 – – –
EDS-205A-M-SC EDS-205A-M-SC-T
4 1 – –
EDS-205A-M-ST EDS-205A-M-ST-T
4 – 1 –
EDS-205A-S-SC EDS-205A-S-SC-T
4
– – 1
EDS-208A EDS-208A-T
8 – – –
EDS-208A-M-SC EDS-208A-M-SC-T
7 1 – –
EDS-208A-M-ST EDS-208A-M-ST-T
7 – 1 –
EDS-208A-MM-SC EDS-208A-MM-SC-T
6 2 – –
EDS-208A-MM-ST EDS-208A-MM-ST-T
6 – 2 –
EDS-208A-S-SC EDS-208A-S-SC-T
7 – – 1
EDS-208A-SS-SC EDS-208A-SS-SC-T
6 – – 2

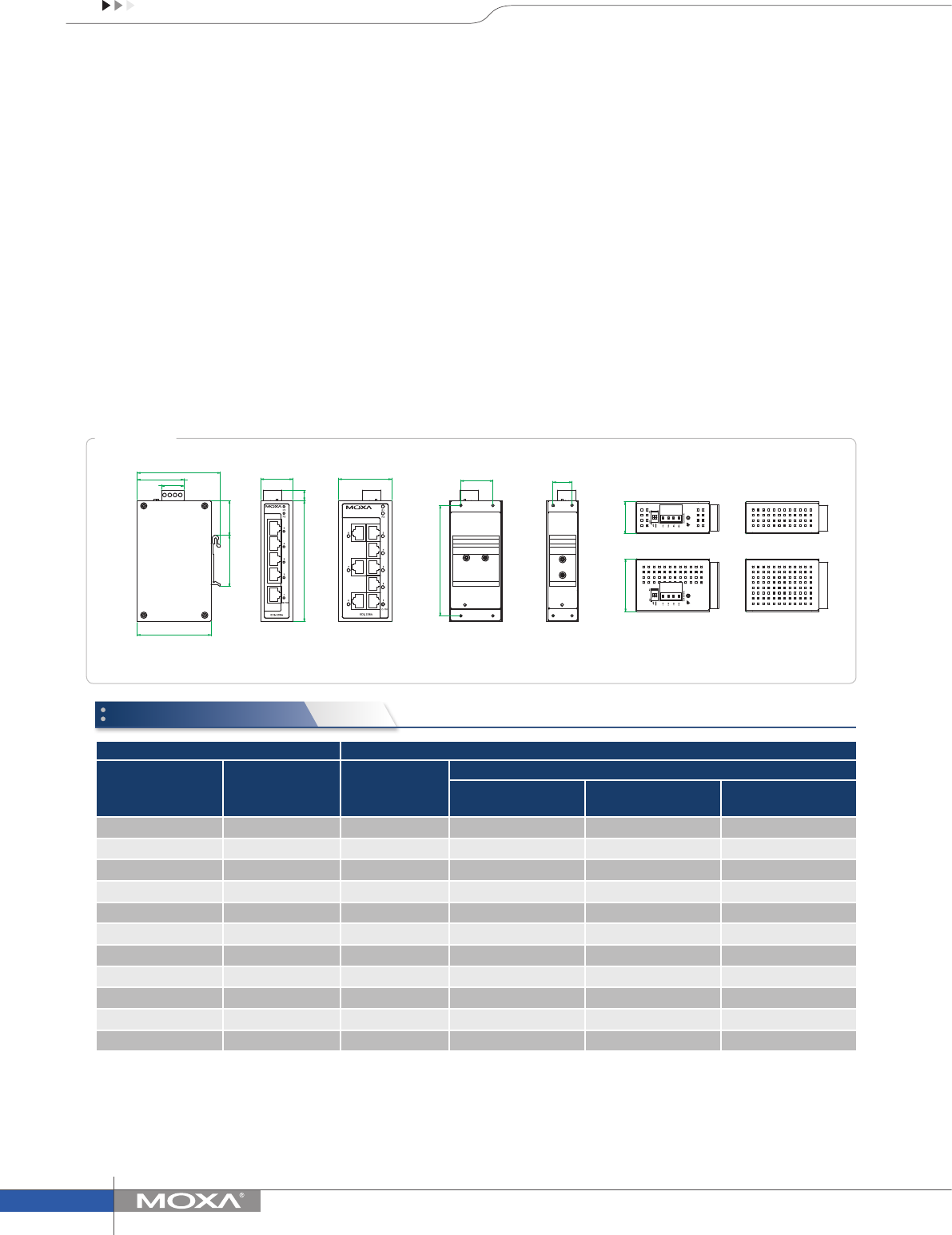

Rear ViewsFront Views
Side View
Top & Bottom Views
Physical Characteristics
Housing: Aluminum, IP30 protection
Dimensions:
EDS-205A: 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
EDS-208A: 50 x 115 x 70 mm (1.96 x 4.52 x 2.76 in)
Weight:
EDS-205A: 175 g
EDS-208A: 275 g
Installation: DIN-Rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature:
Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature: -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Regulatory Approvals
Safety: UL508
Hazardous Location: UL/cUL Class I, Division 2, Groups A, B, C and
D; ATEX Zone 2, Ex nC IIC
EMI: FCC Part 15, CISPR (EN55022) class A
EMS:
EN61000-4-2 (ESD), level 3; EN61000-4-3 (RS), level 3;
EN61000-4-4 (EFT), level 3; EN61000-4-5 (Surge), level 3;
EN61000-4-6 (CS), level 3; EN61000-4-8; EN61000-4-11
Maritime:
DNV, GL, ABS, LR, NK (EDS-205A-M/S: all pending)
Rail Traffic: EN50121-4
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Note: Please check Moxa’s website for the most up-to-date certification status.
MTBF (meantime between failures)
Time: 425,000 hrs
Database: Telcordia (Bellcore), GB
Warranty
Warranty Period: 5 years
Details: See www.moxa.com/warranty
Optional Accessories (can be purchased separately)
DR-4524/75-24/120-24: 45/75/120 W DIN-Rail 24 VDC power supplies
MDR-40-24/60-24: 40/60 W DIN-Rail 24 VDC power supplies, -20 to 70°C operating temperature
WK-30: Wall mounting kit (EDS-205A series only)
WK-46: Wall mounting kit (EDS-208A series only)
RK-4U: 4U-high 19” rack mounting kit
30.5 mm
(1.2 in)
30.0 mm
(1.2 in)
50.0 mm
(2.0 in)
18.0 mm
(0.7 in)
105.0 mm (4.1 in)
30.0 mm
(1.2 in)
10.0 mm
(0.4 in)
115.0 mm (4.5 in)
50.0 mm (2.0 in)
33.2 mm
(1.3 in)
48.4 mm
(1.9 in)
78.8 mm (3.1 in)
70.0 mm (2.8 in)
44.1 mm
(1.7 in)
21.3 mm
(0.8 in)
Dimensions
