- 13 -

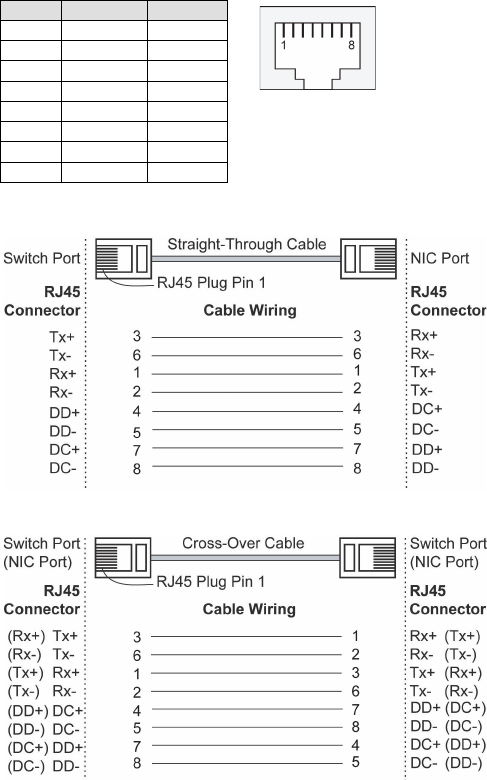

1000BaseT RJ45 Pinouts

Pin

MDI

MDI-X

1

BI_DA+

BI_DB+

2

BI_DA-

BI_DB-

3

BI_DB+

BI_DA+

4

BI_DC+

BI_DD+

5

BI_DC-

BI_DD-

6

BI_DB-

BI_DA-

7

BI_DD+

BI_DC+

8

BI_DD-

BI_DC-

RJ45 (8-pin) to RJ45 (8-pin) Straight-through Cable Wiring

RJ45 (8-pin) to RJ45 (8-pin) Cross-over Cable Wiring
