PCI Express Boards Software Installation
3-33
Configuring the Ports
After the driver has been installed, use Device Manager to configure the CP-118EL serial ports.

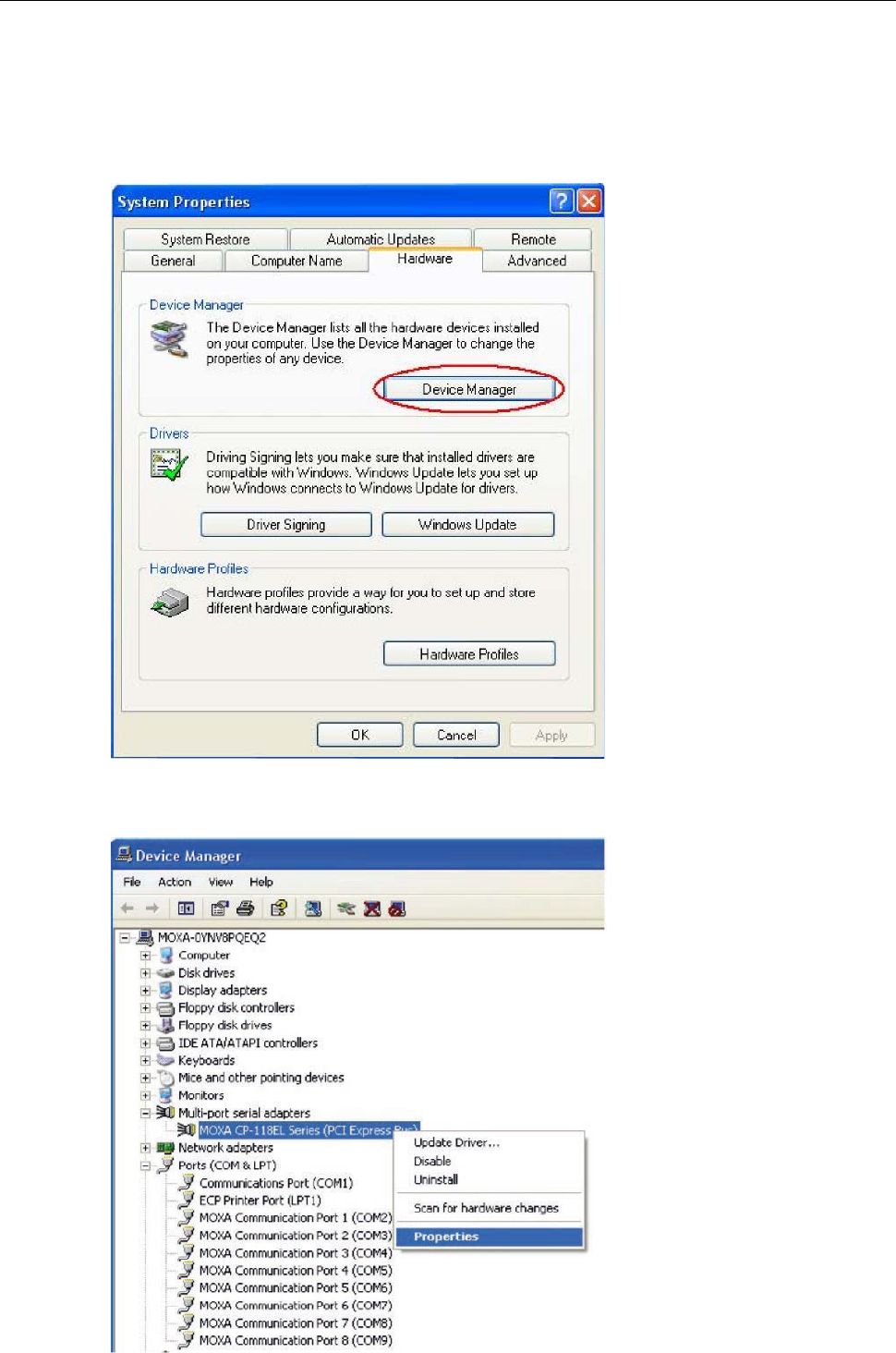

1. Click Start Settings Control Panel System, select the Hardware tab, and then click Device
Manager.
2. Expand the Multi-port serial adapters tab, right click Moxa CP-118EL Series (PCI Express Bus), and
then click Properties to open the board’s configuration panel.
