Technical Reference
Intellio C320Turbo/PCI A-3
Basic Module and Extensive Module for Rackmount Option
Basic Module (for Rackmount option)
8 or 16 serial ports
40MHz TMS320C52 processor
16KB ROM and 32K Words RAM
Diagnostics LEDs show full status of each serial port, including TxD, RxD,
DTR, DSR, RTS, CTS, DCD
16550C UART chip with 32 bytes FIFO (Tx+Rx) and on-chip hardware flow
control
Each UART chip drives one serial port (Max. 460.8K bps)
Full modem control (RS-232 interface)
RJ-45 connector for each serial port
Optional power adapter for use when the distance between Control Board and
Basic Module is longer than 2 meters. In this case, a 10-signal-pin DB25 to
DB25 cable must be used between Control Board and Basic Module.
Power switch
2
3
4
5
6
7
8
1

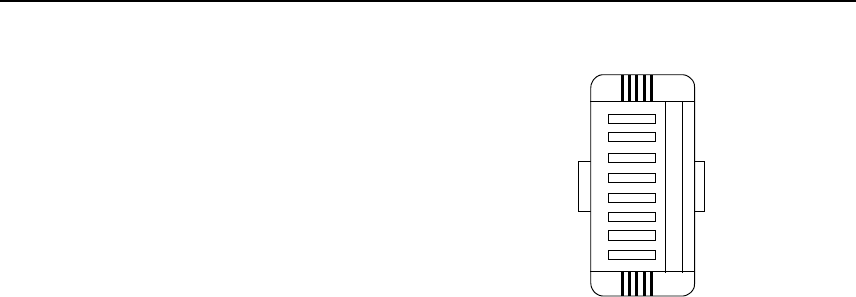

UART Module
