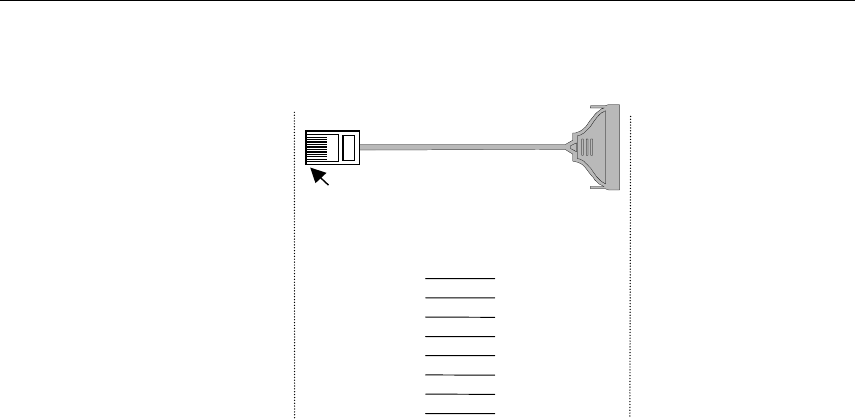

Type 2: Connecting Basic/Extensive Module to a DCE device.
Modem,
or any DCE Device
C3208xT
Cable CN20040
RJ45 Plug Pin 1
C3208xT DCE Device
RJ45 Jack Cable Wiring DB25 Female
Connector Connector
DCD 1 8 DCD
DSR 2 6 DTR
RTS 3 4 CTS
GND 4/7 7 GND
TxD 5 2 RxD
RxD 6 3 TxD
CTS 8 5 RTS
DTR 9 20 DSR
☞ For Rackmount option, this RJ45 to male DB25 RS-232 testing cable
(CN20040) comes with the Basic Module and is provided for testing.
☞ 4/7 means either line 4 or line 7 can be used for GND.
