User`s manual

Introduction
Intellio C320Turbo/PCI User's Manual 1-3
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1

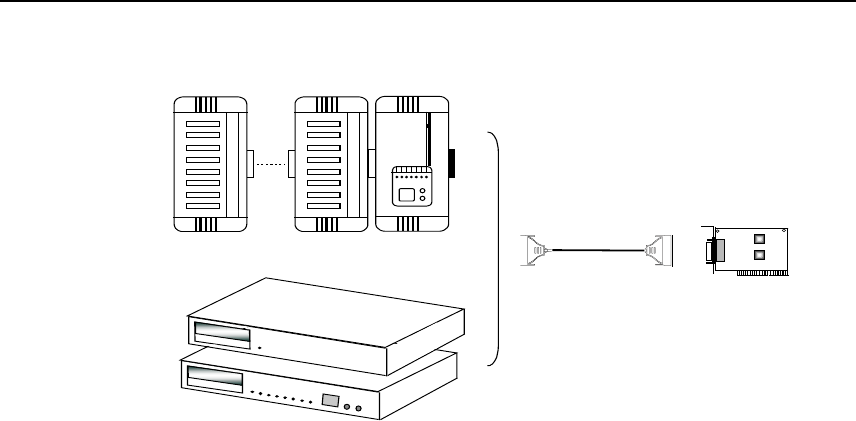

Extensive Module
Basic Module
UART
Module
CPU
Module
UART
Module
C320 Turbo/PCI
DB25 to DB25 Cable
Surge/Isolation Protection
To prevent the boards from damage caused by lightning or high potential voltage,
TVSS (Transient Voltage Surge Suppressor) and high potential difference protector
technologies are introduced in some connection options to protect the multiport
controller. This is critical to harsh environment such as factory, severe weather such
as lightning, or other high interference situations.
Status Indicator
The status of the communication lines is displayed on a row of diagnostic LED
indicators on the front panel of the external module, including TxD, RxD, DTR,
DSR, RTS, CTS, and DCD signals.
Major Operating System Support
It supports most popular O.S. platforms like Windows NT, Windows 95/98, SCO
UNIX/OpenServer, UNIX SVR4.2, Linux. MOXA device drivers feature easy
installation, configuration and better performance. In this manual, chapters for
MOXA Windows NT, Windows 95/98, and UNIX device drivers are included. For
other systems not mentioned, please contact Moxa dealer/distributor or Moxa or visit
the MOXA Web site for more information
about newly available device drivers.
