RS-232 Cable Wiring for C32080T/81T/82T/83T & CN20040
For Basic/Extensive Modules, only RS-232 interface with RJ-45 female connector is
supported. A 1.5-meter male RJ-45 to male DB25 RS-232 testing cable, CN20040,
is provided with shipment of the Basic Module.
The following RS-232 Basic Modules are designed for Intellio C320Turbo/PCI.
C32080T : Basic Module providing 8 female RS-232 ports.
C32081T : Basic Module providing 16 female RS-232 ports.
The following RS-232 Extensive Modules are designed for Intellio
C320Turbo/PCI.
C32082T : Extensive Module providing 8 female RS-232 ports.
C32083T : Extensive Module providing 16 female RS-232 ports.

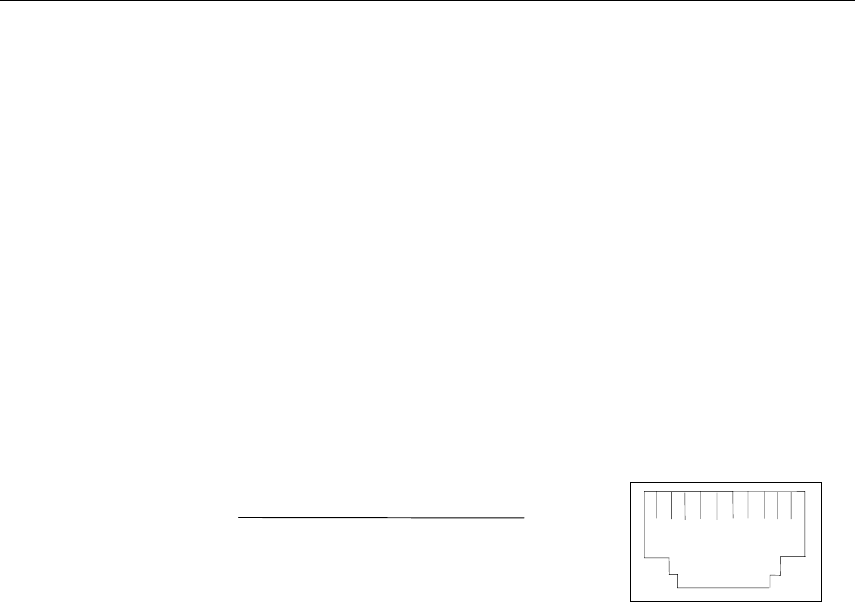

C32080T/81T/82T/83T RJ-45 Jack
Pin Signals
1DCD
2DSR
3RTS
4GND
5TxD
6RxD
7GND
8CTS
9DTR
10 -
1
10
RJ45 JACK
