Connection Option and Cable Wiring
Intellio C320Turbo/PCI User's Manual 5-7

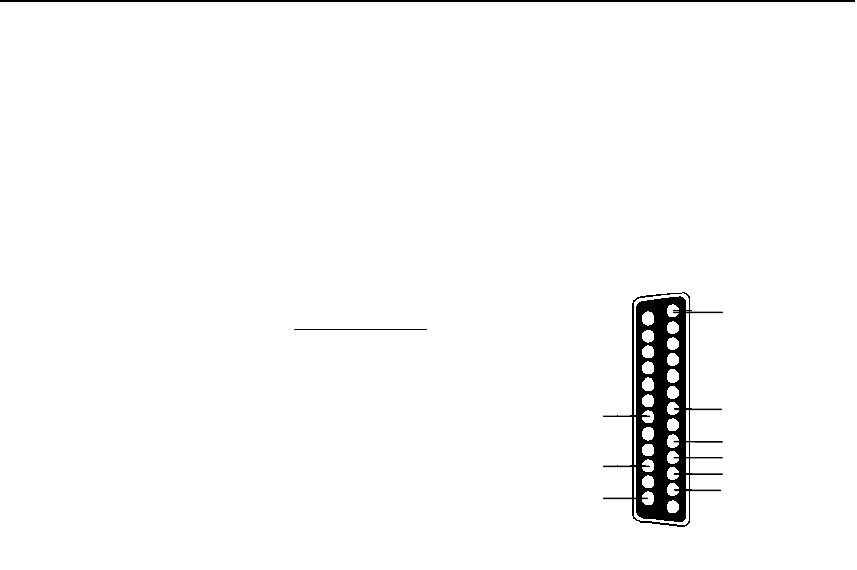

RS-422 Cable Wiring for C32061T/C32065T
The following RS-422 UART Modules are designed for Intellio C320Turbo/PCI.
C32061T: UART Module providing 8 female RS-422 DB25 ports without
isolation protection.
C32065T: UART Module providing 8 female RS-422 DB25 ports with 2000V
isolation protection which can prevent damage caused by high
potential voltage.
C32061T/65T
2RxD+(B)
3TxD+(B)
14 RxD-(A)
16 TxD-(A)
7GND
4CTS+(B)
5RTS+(B)
13 RTS-(A)
19 CTS-(A)
☞ The DTR, DSR and DCD signal lines (not shown) of the
C32061T/C32065T are internally shorted by design to meet certain
software requirements.
The RS-422 transmission distance can reach as long as 4000ft. The connection box
needs an external power adapter to supply 5V DC power. Either 110V or 220V AC
power adapter is selectable.
CTS-(A) 19
TxD-(A) 16
RxD-(A) 14
13 RTS-(A)
7 GND
5 RTS+(B)
4 CTS+(B)
3 TxD+(B)
2 RxD+(B)
