Configuring Board and Port
If you already have installed the driver and want to re-configure the Intellio
C320Turbo/PCI board under Windows 95/98, the following is the procedure for
you.

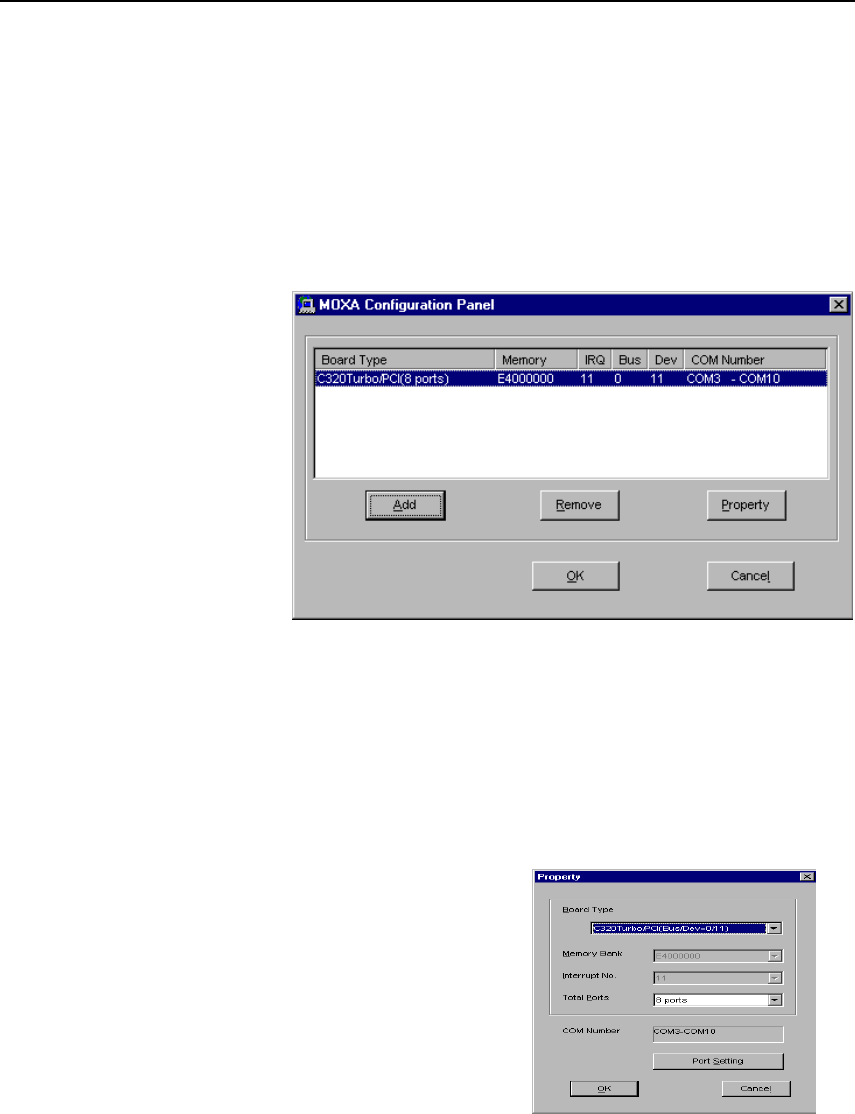

1. Click on the Taskbar [Start] button, select the [Programs] menu, and the
[MOXA Utilities] menu and the [MOXA Configuration Panel] icon.
The [Add] button and the [Remove] button are not applicable in PCI case. A
new C320Turbo/PCI board will be automatically found as new hardware and
added during the Windows 95/98 startup. To remove a board, simply unplug the
undesired C320Turbo/PCI board physically from the system.
2. Click [Property] to enter “Property” dialog box to re-configure the selected
board with the desired “Total Ports” and “COM Number”. Choose the
appropriate one, 8, 16, 24, or 32 ports, in the “Total Ports” field, which should
match the number of ports that will be physically connected.
