Software Installation
Intellio C320Turbo/PCI User's Manual 3-15
Port Configuration Stage

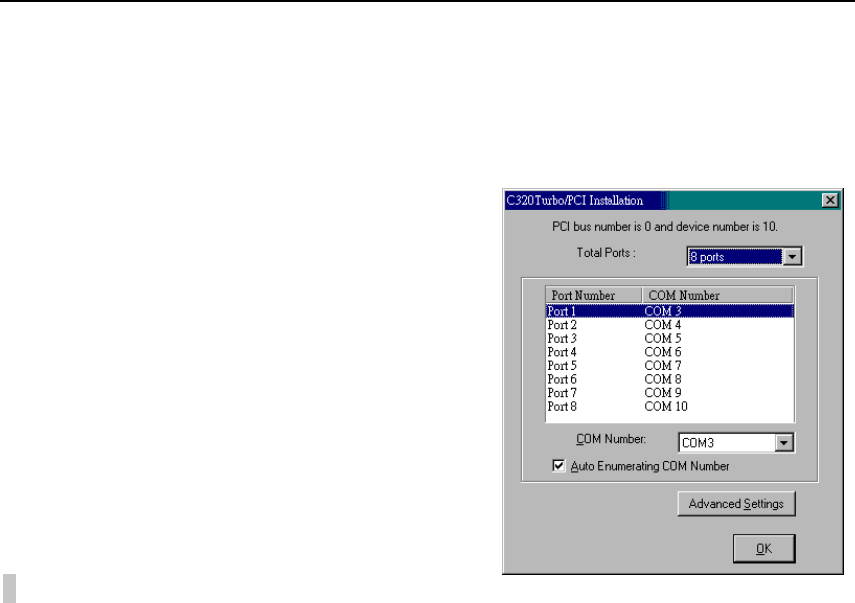

This stage displays the “C320Turbo/PCI Installation” dialog box for the port
configuration. Here you can map the MOXA ports to the system COM numbers.
In the “C320Turbo/PCI Installation” dialog box, you can map the physical ports to
COM numbers in two ways depending on the “Auto Enumerating COM number”
check box.
D Sequential Port Mapping: (Enable “Auto Enumerating COM number”) Specify
the COM number of the first port and subsequent ports are mapped to continuous
COM numbers. For instance, if first port is mapped to COM10, then second port
is mapped to COM11 sequentially.
D Non-sequential Port Mapping: (Disable “Auto Enumerating COM number”)
Specify the COM number for individual port. For instance, the second port can be
out of sequence, say COM18, while the first port is mapped to COM10.
