User`s manual

Software Installation
Intellio C320Turbo/PCI User's Manual 3-3

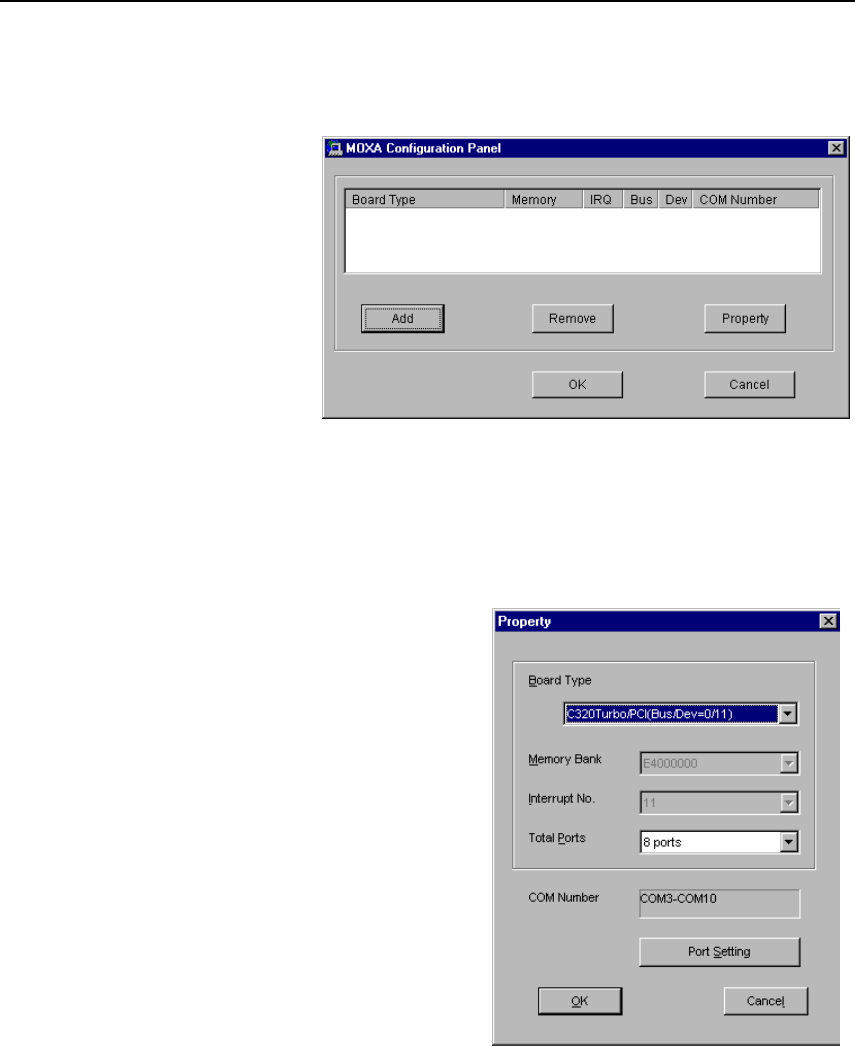

5. Select “MOXA Intellio Family Multiport Board” in the “Select OEM Option”
dialog box, and click [OK] to enter the “MOXA Configuration Panel” dialog
box to start the installation.
6. In the “MOXA Configuration Panel” dialog box, click [Add] to enter
“Property” dialog box to add the Intellio C320Turbo/PCI board. Select the
“C320Turbo/PCI” in the “Board Type” field and choose the appropriate one, 8,
16, 24, or 32 ports, in the “Total Ports” field, which should match the number of
ports that are physically connected.
