User`s manual

Hardware Installation

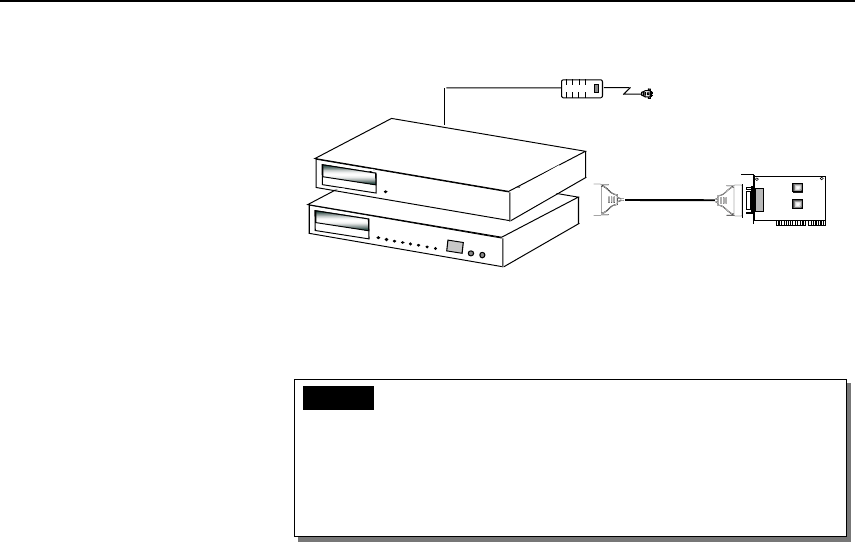

Intellio C320Turbo/PCI User's Manual 2-7
10-singal-pin Cable
Power Adapter
Extensive Module
Basic Module
C320 Turbo/PCI
C: Plug the other DB25 female end into the Basic Module’s DB25
connector.
Warning! Do not use a 25-signal-pin cable to connect the
Intellio C320Turbo/PCI Control Board to the
Basic Module when using the power adapter as this
will cause power crash. (One power comes from the
power adapter while the other power comes from
the Intellio C320Turbo/PCI Control Board)
D: Connect the power adapter to the Basic Module. Keep the Basic
Module’s power switch in the OFF position. If Extensive Module(s)
is(are) also required, keep the Basic Module’s power switch in the
OFF position until all necessary Extensive Module(s) is (are)
installed.
E: Install the power adapter to a power source, either 110V or 220V AC.
Adjustment to the AC power specs is done automatically.
Step 8: If one more Extensive Module is required, plug the DB37 to DB37 male
end of the shipped 1-meter cable into the DB37 female connector on the
rear panel of the Basic Module and the other end of the cable into the
DB37 male connector on the rear panel of the Extensive Module. If more
Extensive Module is needed, connect the next Extensive Module to the
previous one as described above.
