2-6 Intellio C320Turbo/PCI User's Manual

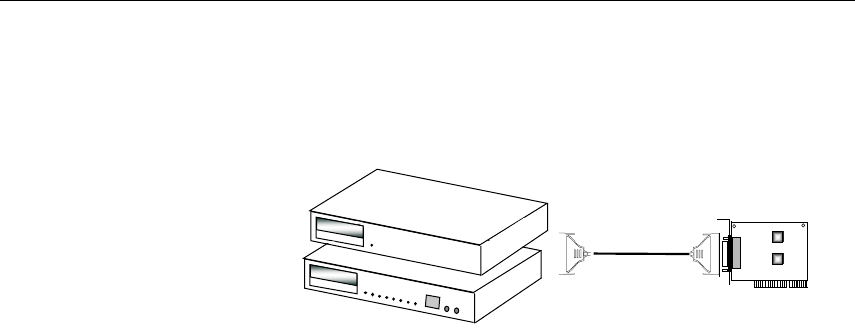

Without power adapter (for normal condition)
In most cases, you need not a power adapter.
Extensive Module
Basic Module
25-singal-pin Cable
C320 Tur bo/PCI
A: Set the Basic Module power switch to the OFF position. This is
absolutely necessary when installing or removing the cable, the Basic
Module or the Extensive Module(s). Power should not be switched on
until you installed all components.
B: Plug the DB25 male end of the shipped 2-meter 25-signal-pin cable
into the connector on the rear panel of the Intellio C320Turbo/PCI
Control Board. Refer to the chapter 5 for the cable pinout details.
C: Plug the other DB25 female end into the Basic Module’s DB25
connector.
With power adapter (
for range extension/external power condition )
In case of range extension or external power requirement, you need a
power adapter.
A: Set the Basic Module power switch to the OFF position. This is
absolutely necessary when installing or removing the cable, the Basic
Module or the Extensive Module(s). Power should not be switched on
until you installed all components.
B: Plug the DB25 male end of the shipped 2-meter 10-signal-pin cable
(the link cable comes with long range extension kit or the one
fabricated according to the pinouts in chapter 5) into the connector on
the rear panel of the Intellio C320Turbo/PCI Control Board.
