Hardware Installation
Intellio C320Turbo/PCI User's Manual 2-5
Step 8: Connect the first UART Module to the CPU Module. Connect the second
UART Module to the first one if necessary and so on.

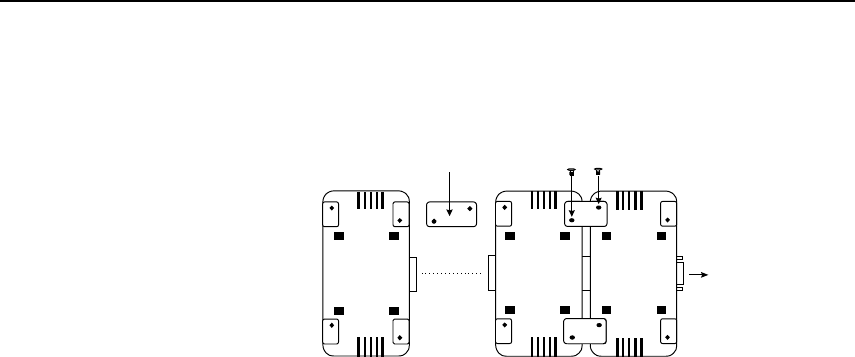

For better fixation of modules, Fixing Kit is available and see the bottom
view of modules below to install.
Step 9: After making sure that each component has been correctly installed, you
are recommended to power on the CPU Module first and then power on
the PC system secondly.
☞
☞☞
☞ Now the installation of the external CPU/UART modules is complete.
Continue to install the software driver explained in the chapter 3.
Installing the Basic and Extensive Modules (Rackmount)
Step 7: Connect the Intellio C320Turbo/PCI Control Board to the Basic Module
with the shipped DB25 to DB25 cable as shown in the following picture.
If range extension or external power is required, please use 10-signal-pin
cable coming with long range extension kit, instead. Thus, there are two
types installation: without power adapter and with power adapter,
which are described as follows:
To Control Board
CPU Module
UART Module
UART Module
ScrewsMetal Plate
