Installation guide

- 6 -

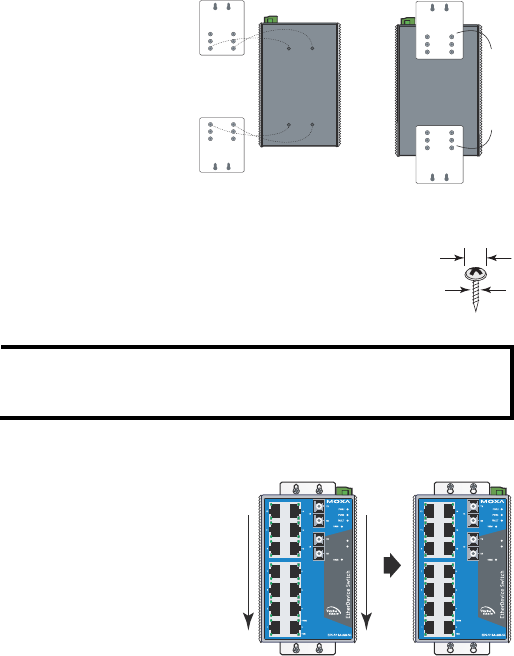

Wall Mounting (Optional)
For some applications, you will find it convenient to mount Moxa EDS-518A
on the wall, as shown by the following illustrations:
STEP 1—Remove the
aluminum DIN-Rail
attachment plate from the
Moxa EDS-518A rear panel,
and then attach the wall mount
plates with M3 screws, as
shown by the figure on the
right.
Ö
To p
plate
Bottom
plate
STEP 2—Mounting Moxa EDS-518A on the wall requires 4
screws. Use the EDS-518A, with wall mount plates attached, as a
guide to mark the correct locations of the 4 screws. The heads of
the screws should be less than 6.0 mm in diameter, and the shafts
should be less than 3.5 mm in diameter, as shown by the figure
on the right.
6.0 mm
3.5 mm
NOTE
Before tightening the screws into the wall, make sure the screw
head and shank size are suitable by inserting the screw through
one of the keyhole-shaped apertures of the Wall Mounting Plates.
Do not screw the screws in all the
way—leave about 2 mm to allow
room for sliding the wall mount
panel between the wall and the
screws.
STEP 3—Once the screws are fixed
to the wall, insert the four screw
heads through the wide parts of the
keyhole-shaped apertures, and then
slide the EDS-518A downwards, as
indicated in the figure at the right.
Tighten the four screws for more
stability.
