Installation guide

- 4 -

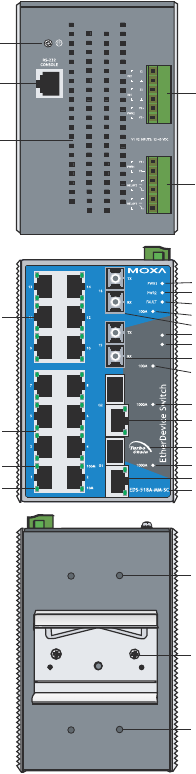

Panel Views of EDS-518A
(SC/ST Type)
9
15
14
13
18
6
6
10
11
12
15
16
17
7
8
22
23
22
1
3
2
4
5
19
20
21
21
MSTR/HEAD
CPLR/TAIL
NOTE:
The appearance of EDS-518A-SS-SC
is identical to EDS-518A-MM-SC.
The appearance of EDS-518A-MM-ST is
identical to EDS-518A-MM-SC.
1. Grounding screw
2. Console port
3. Heat dissipation orifices
4. 6-pin terminal block for DI 1, DI
2, and PWR 2
5. 6-pin terminal block for PWR1
Relay 1, and Relay 2
6. 10/100BaseT(X), ports 1 to 14
7. PWR 1: LED for power input 1
8. PWR 2: LED for power input 2
9. Fault LED
10. MSTR/HEAD LED
11. CPLR/TAIL LED
12. 10/100/1000BaseT(X) Port G2
13. 10/100/1000BaseT(X) Port G1
14. Turbo Chain Logo
15. 1000 Mbps LEDs
16. TP port’s 100 Mbps LED
17. TP port’s 10 Mbps LED
18. Model Name
19. 100BaseFX Port 16
20. 100BaseFX Port 15
21. 100BaseFX LEDs
22. Screw hole for Wall Mounting
Kit
23. DIN-Rail Kit
