Installation guide

- 11 -

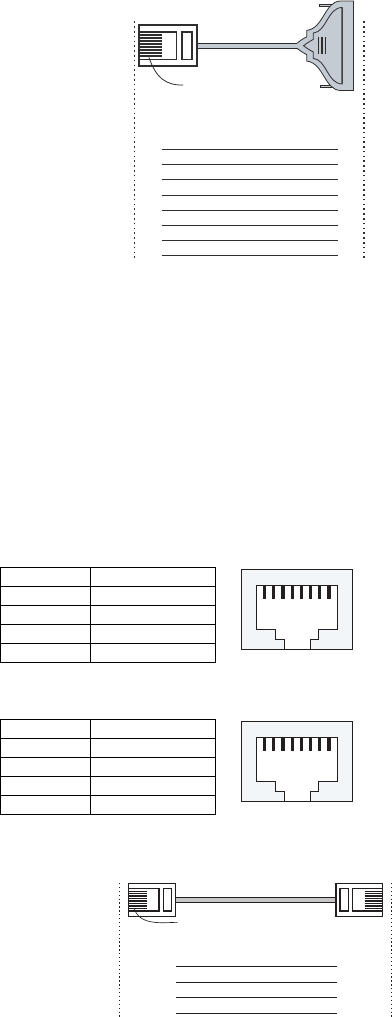

RJ45 (10-pin) to DB25 (F) Cable Wiring
RJ45 Plug Pin 1
Moxa
EtherDevice
Server
RJ45
Connector
DCD
DSR
RTS
GND
TxD
RxD
CTS
DTR
COM Port
Female DB2
5
Connector
DCD
DTR
CTS
GND
RxD
TxD
RTS
DSR
Cable Wiring
1
2
3
4/7
5
6
8
9
8
6
4
7
2
3
5
20
10/100BaseT(X) Ethernet Port Connection
The 10/100BaseT(X) ports located on Moxa EtherDevice Switch’s front
panel are used to connect to Ethernet-enabled devices. Most users will choose
to configure these ports for Auto MDI/MDI-X mode, in which case the port’s
pinouts are adjusted automatically depending on the type of Ethernet cable
used (straight-through or cross-over), and the type of device (NIC-type or
HUB/Switch-type) connected to the port.
In what follows, we give pinouts for both MDI (NIC-type) ports and MDI-X
(HUB/Switch-type) ports. We also give cable wiring diagrams for
straight-through and cross-over Ethernet cables.
RJ45 (8-pin, MDI) Port Pinouts
Pin Signal
1 Tx+
2 Tx-
3 Rx+
6 Rx-
1 8
RJ45 (8-pin, MDI-X) Port Pinouts
Pin Signal
1 Rx+
2 Rx-
3 Tx+
6 Tx-
1 8
RJ45 (8-pin) to RJ45 (8-pin) Straight-through Cable Wiring
Straight-Through Cable
RJ45 Plug Pin 1
Switch Port
RJ45
Connector
RJ45
Connecto
r
Tx+
Tx-
Rx+
Rx-
NIC Port
Cable Wiring
3 3
6 6
1 1
2 2
Rx+
Rx-
Tx+
Tx-
