RS232 Multiplexer Feature
3-350 AT Commands Reference Manual January 31, 2007
Multiple Channel Configuration
The configurations listed below are recommended to achieve maximum use of parallel channels
with minimum conflicts.
Two Channel Configuration
•
DLC1 – Data channel dedicated to CDS
• DLC2 – ACCH (AT command channel; includes all AT commands except CDS related
commands)

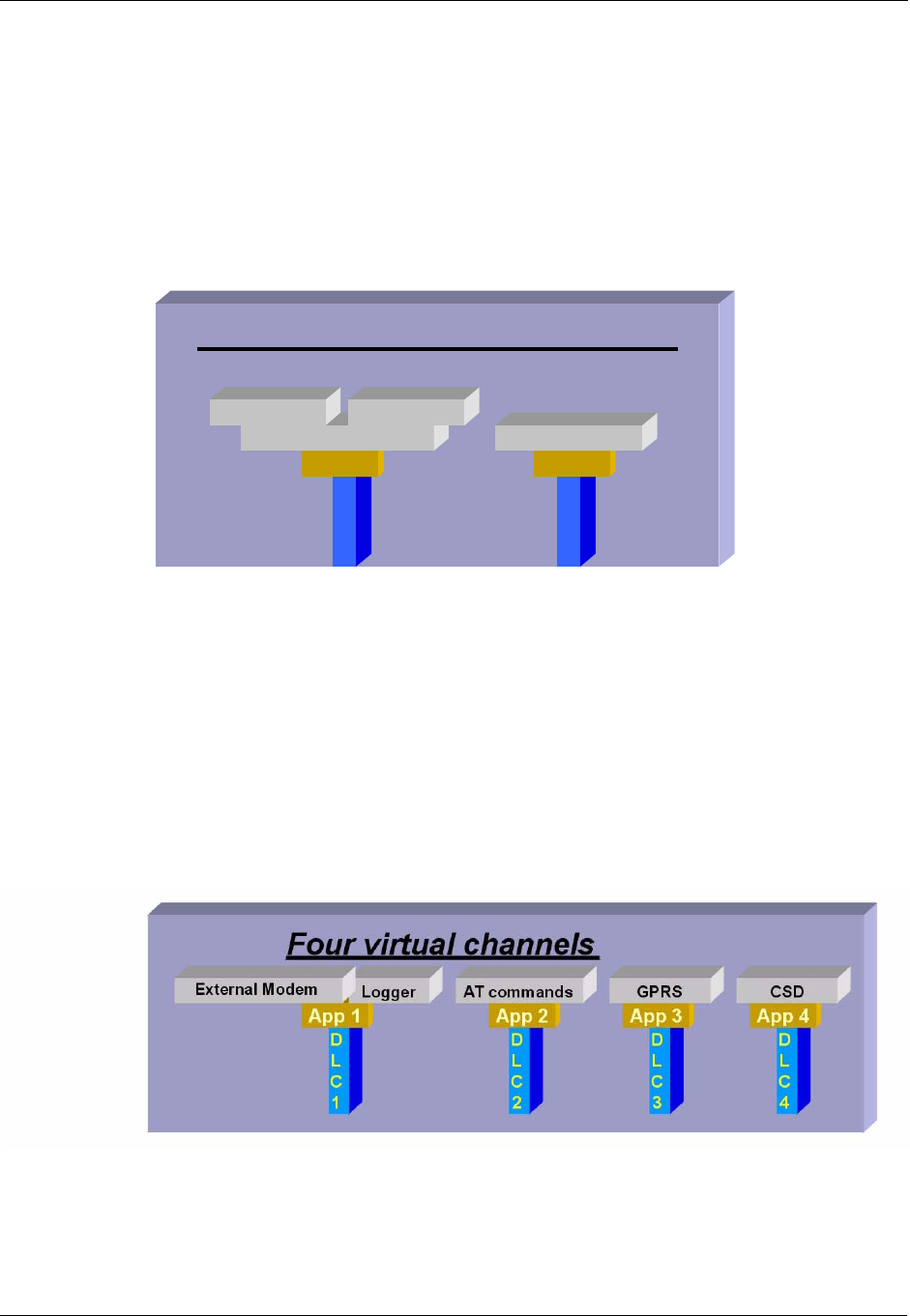

Figure 3-17: Two-channel Configuration
Note: Between data sessions, DLC1 is IDLE (in command mode).
Four-channel Configuration
•
DLC1 – GRLC or Logger
• DLC2 – ACCH
• DLC3 – CSD
• DLC4 – GPRS
Figure 3-18: Four-Channel Configuration
Note: Between sessions, the Data and GPRS channels are IDLE (in command mode).
Two virtual channels – G24
D
L
C
1
App 1
External Modem
D
L
C
2
App 2
AT commands
GPRS CSD
