Installation Instructions

5.4
Speaker and Control Head Installation
NOTICE: To disable the internal speaker of the O2 Control Head, refer to Internal Speaker
Disassembly on page 71.
The control head mounting location and configuration is determined largely by the make and model of
motorcycle. Two different mounting configurations are described below. One involves mounting the
speaker and control head together as a unit using the combination speaker/control-head bracket
(shown in Figure 102: Handlebar Installation with Speaker and Control Head Mounted Together on
page 104) supplied by Motorola Solutions. Alternately, the control head may be mounted by itself using
a smaller control-head bracket supplied by Motorola Solutions. In this case, the speaker is mounted
elsewhere. This section outlines installation procedures for each configuration mentioned above. The
customer (or installer) is in the best position to determine the most appropriate mounting configuration
for the control head and speaker based on the particular motorcycle on which the equipment is to be
mounted.
CAUTION: When determining its location, position the control head so that it is clearly visible
and within easy reach of the motorcycle operator.

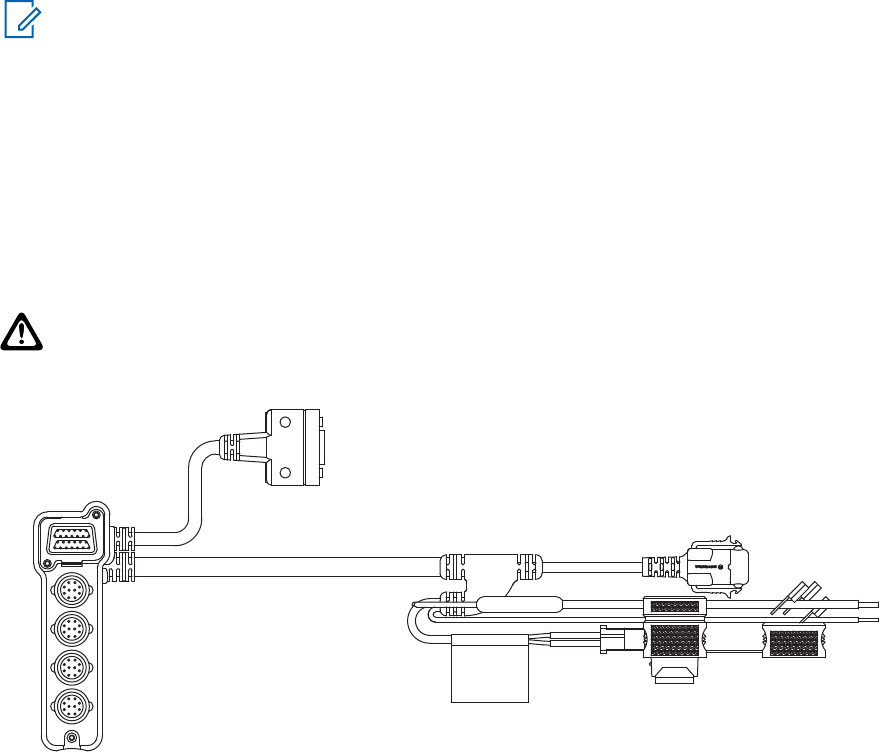

Figure 101: Motorcycle Control Head Cabling (3075217A01)
5.4.1
Handlebar Installation with Speaker and Control Head Mounted
Together
Figure 102: Handlebar Installation with Speaker and Control Head Mounted Together on page 104
illustrates the combination of speaker/control head bracket. This combination bracket is used only
when the control head and speaker are mounted as a unit. Handlebar-mounting bracket which may be
required if the combination speaker/control-head bracket cannot be easily mounted to the motorcycle.
In this case, the handlebar-mounting bracket is mounted to the motorcycle, and the combination
bracket is then mounted to the handlebar-mounting bracket.
