Installation Instructions

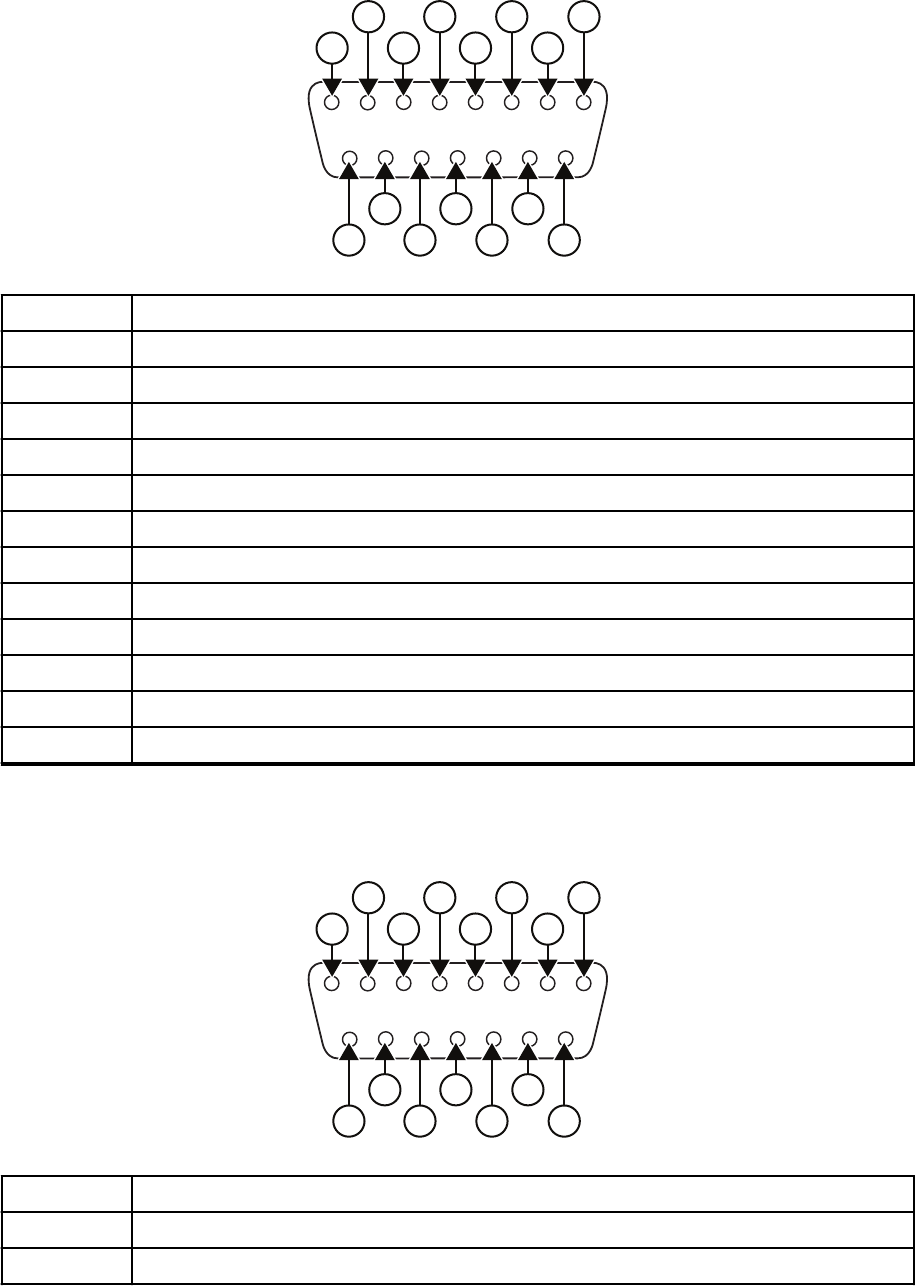

Figure 98: Rear Accessory Connector Audio Configuration
5 4
3
2 1
9
1011121314
15
7 68
1
2
3
4
5
6
7
8
9
8
10
11
12
8
8
No. Description
1 GND
2 SPKR LO-
3 SPKR HI+
4 IGNITION
5 SWB+
6 VIP OUT 2
7 EMER
8 N.C.
9 MIC HI
10 PTT
11 VIP OUT 1
12 DISC. AUD
Use the HKN6159_ data adapter kit cable if your vehicle was formerly wired for an ASTRO Spectra or
ASTRO Spectra Plus radio, and used the rear cable pins as shown in the following figure.
Figure 99: Rear Accessory Connector Data Configuration
5 4
3
2 1
9
1011121314
15
7 68
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
No. Description
1 DIG GND
2 SPKR LO-
