ASTRO Digital XTS 5000 Model III 25
General Radio Operation
Receive / Transmit
Without Using the Volume Set and Monitor Buttons
Use the Preprogrammed Volume Set Button
1 Turn the radio on and select
the desired zone and
channel.
2 Listen for a transmission.

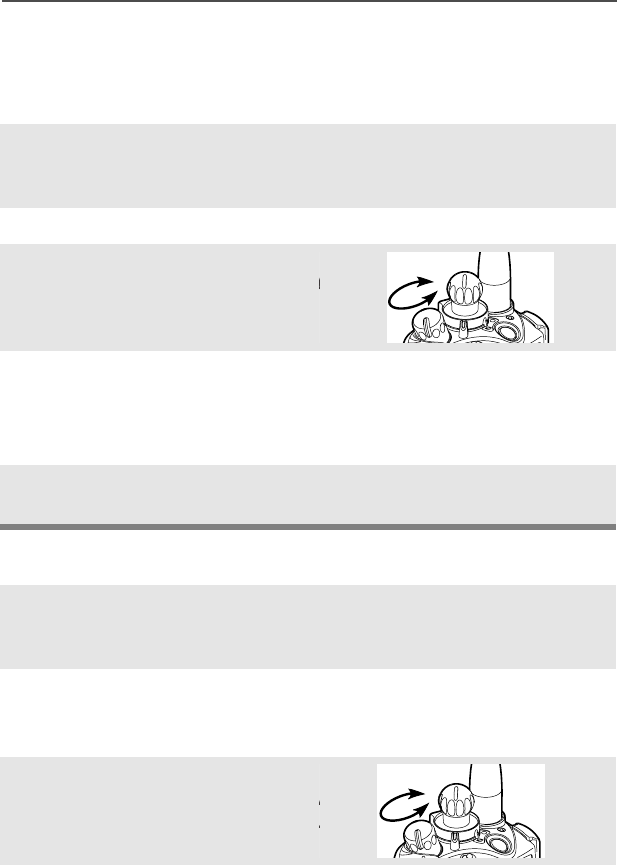

3 Adjust the Volume Control
knob if necessary.
4 Press and hold the PTT
button to transmit. The LED
lights RED while
transmitting.
5 Release the PTT button to
receive (listen).
1 Turn the radio on and select
the desired zone and
channel.
2 Press and hold the Volume
Set button to hear the
volume set tone.
3 Adjust the Volume Control
knob if necessary.
4 Release the Volume Set
button.
A
djust
Level
A
djust
L
evel
