User's Guide

English
m
ASTRO
®
APX 4000 Series
Digital Portable Radios
Quick Reference Card
Product Safety and RF Exposure Compliance
ATTENTION!
This radio is restricted to occupational use only to satisfy FCC RF
energy exposure requirements. Before using this product, read
the RF energy awareness information and operating instructions
in the Product Safety and RF Exposure booklet enclosed with
your radio (Motorola Publication part number 6881095C98) to
ensure compliance with RF energy exposure limits.

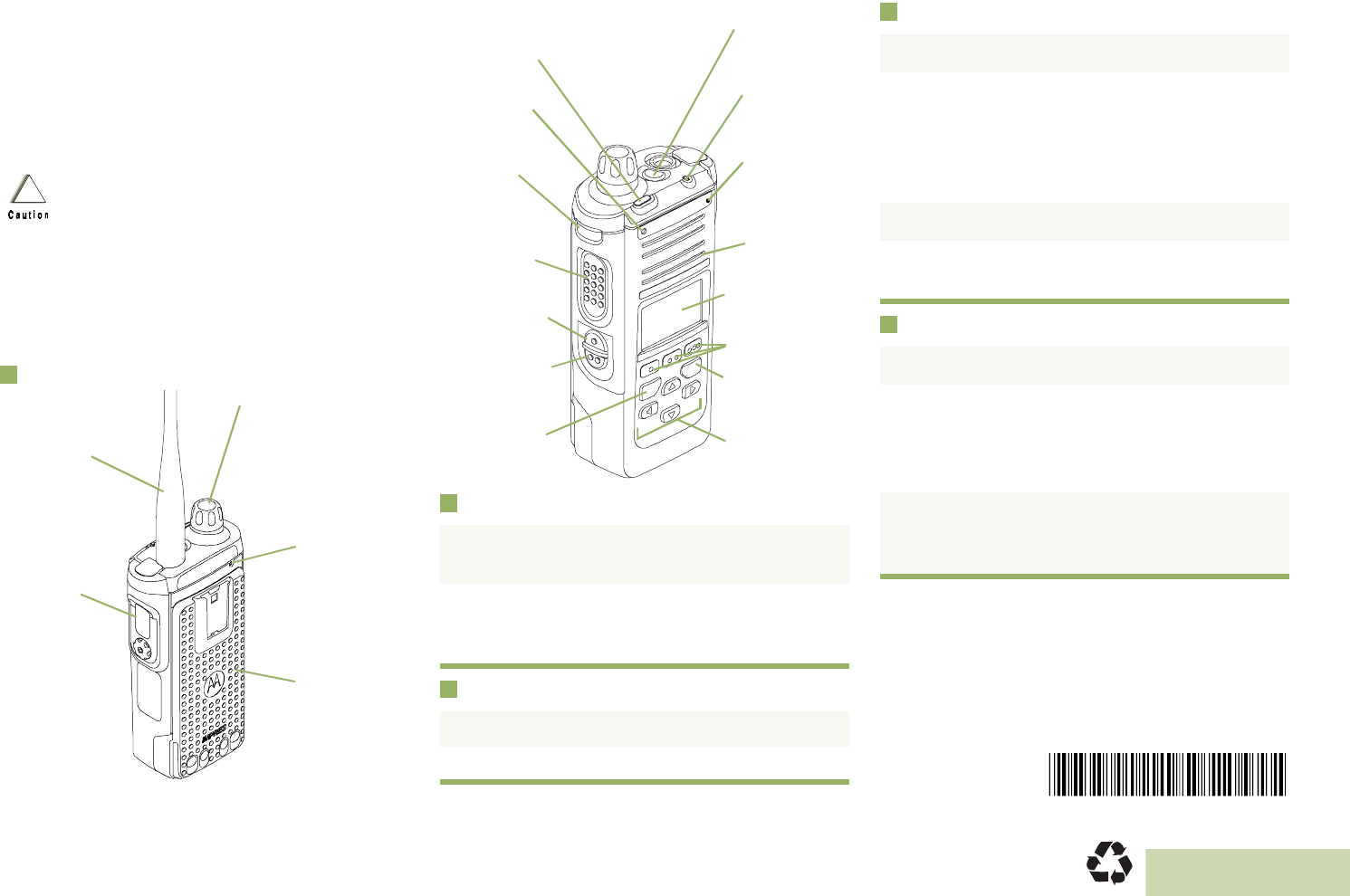

Radio Controls
Radio On/Off
Zones and Channels
Receiving and Transmitting
Sending an Emergency Alarm
* Default emergency button press timer is set
to 1 second. This timer is programmable, see
page 55 in the user guide for details.
To exit emergency at any time, press and hold
the Emergency button.
Before using this product, read the operating instructions
for safe usage contained in the Product Safety and RF
Exposure booklet enclosed with your radio.

Antenna
Accessory
Connector
Multi-Function Knob
(MFK):
Primary Feature:
_________________
Secondary Feature:
_________________
Battery
Microphone
 On  Press and hold the MFK until the display
lights up.
 Off  Press and hold the MFK until you see
Power off?, then press Menu Select button
below Yes.
 Zone  Zone scroll to desired zone.
 Channel  Channel scroll to desired channel.
Top Lightbar
Side Button 1
__________
PTT Button
Top Side
(Select)
Button
__________
Bluetooth
®
Pairing
Indicator
Main
Speaker
Microphone
Side Button 2
__________
Home Button
LED
Menu Select
Buttons
Data Feature
Button
4-Way Navigation
Button
Main Display
Top (Orange)
Button
__________
1 Select zone/channel.
2 Listen for a transmission.
OR
Press and hold Volume Set button.
OR
Press Monitor button and listen for activity.
3 Adjust volume, if necessary.
4 Press the PTT button to transmit; release to
receive.
1 Press and hold the Emergency button*.
2 The display shows Emergency and the
current zone/channel. You hear a short,
medium-pitched tone, and the LED blinks
momentary red.
3 When acknowledgment is received, you hear
four beeps; alarm ends; and radio exits
emergency.
PMLN6073A
